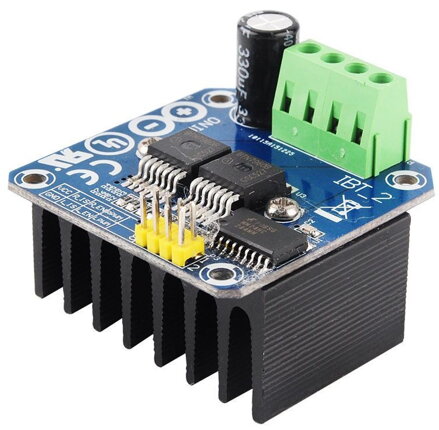

The IBT-2 H-bridge module from wingxin is an inexpensive, high power motor driver based on two BTS7960 chips
The drive uses an H-bridge driver module that composed by Infineon power drive chip BTS7960, with overheating and overcurrent protection.
Double BTS7960 H-bridge driver circuit, with strong drive and braking effect, use 74HC244 chip effectively isolate the microcontroller and the motor drive! High Current up to 43A!
Specifications:
- Input voltage: 6V-27V
- Model: IBT-2
- Maximum current: 43A
- Input level: 3.3-5V
- Control mode: PWM or level
- Duty cycle: 0-100%
PIN Definition:
- RPWM: Right Turn PWM
- LPWM: Left Turn PWM
- R_EN: Right Turn Enable (High Active)
- L_EN: Left Turn Enable (High Active)
- R_IS: Right Turn Current Warning (May Leave Floating)
- L_IS: Left Turn Current Warning (May Leave Floating)
- VCC: (5V)
- GND
Connections:
Method 1:
- VCC: 5V from Microcontroller(MCU)
- GND: GND from Microcontroller(MCU)
- L_PWM: PWM or 5V from Microcontroller(MCU) for CCW(CW) Turns
- R_PWM: PWM or 5V from Microcontroller(MCU) for CW(CCW) Turns
- R_EN and L_EN: 5V from Microcontroller(MCU)
Method 2:
- VCC: 5V from Microcontroller(MCU)
- GND: GND from Microcontroller(MCU)
- L_PWM: 5V from Microcontroller(MCU) for CCW(CW) Turns
- R_PWM: 5V from Microcontroller(MCU) for CW(CCW) Turns
Package Included:
- 1 X Double BTS7960 43A H-bridge High-power Motor Driver Module
