Popis Orange Pi Lite2 1GB USB 3.0 Android 7.0
It's an open-source single-board computer. It can run Android 7.0 Image. It uses the AllWinner H6 SoC, and has 1GB LPDDR3 (shared with GPU) SDRAM.
Hardware specification:
CPU: H6 Quad-core 64-bit ARM Cortex™-A53
GPU:
- High-performance multi-core GPU Mali T720
- OpenGL ES3.1/3.0/2.0/1.1
- Microsoft DirectX 11 FL9_3
- ASTC(Adaptive Scalable Texture Compression)
- Floating point operation greater than 70 GFLOPS
Memory (SDRAM): 1GB LPDDR3 (shared with GPU)
Onboard Storage: TF card (Max. 32GB) /MMC card slot
WIFI+BT: AP6255, IEEE 802.11 AC/bb/g/n, BT4.1
Audio Input: MIC
Audio Output: HDMI 2.0a
Video Input:
- A CSI input connector Camera
- Support 8 bit digital camera interface
- Maximum still capture resolution for parallel interface to 5M
- Maximum still capture resolution for parallel interface to 5M
Video Decoding:
- H265/HEVC Main/Main10 profile@Level5.2 High-tier ;4K@60fps, up to 6Kx4K@30fps
- H264/AVC BP/MP/HP@level5.1, MVC, 4K@30fps
- VP9，Profile 0/2, 4K@30fps
- AVS /AVS JIZHUN profile@level 6.0, 1080P@60fps
- Video Outputs: HDMI 2.0a TX with HDCP 2.2 output
- Power Source: DC input, USB OTG input can supply power
- PMU: AXP805
- USB 2.0 Ports: One USB 2.0 Host, one Micro USB 2.0
- USB 3.0 Ports: One USB 3.0 Host
- Low-level peripherals: 26 Pins Header
- GPIO(1x3) pin: UART, ground.
- LED: Power led & Status led
- IR Receiver: Yes
- Key: Power(K1)
- Supported OS: Android, Ubuntu, Debian
Interface definition:

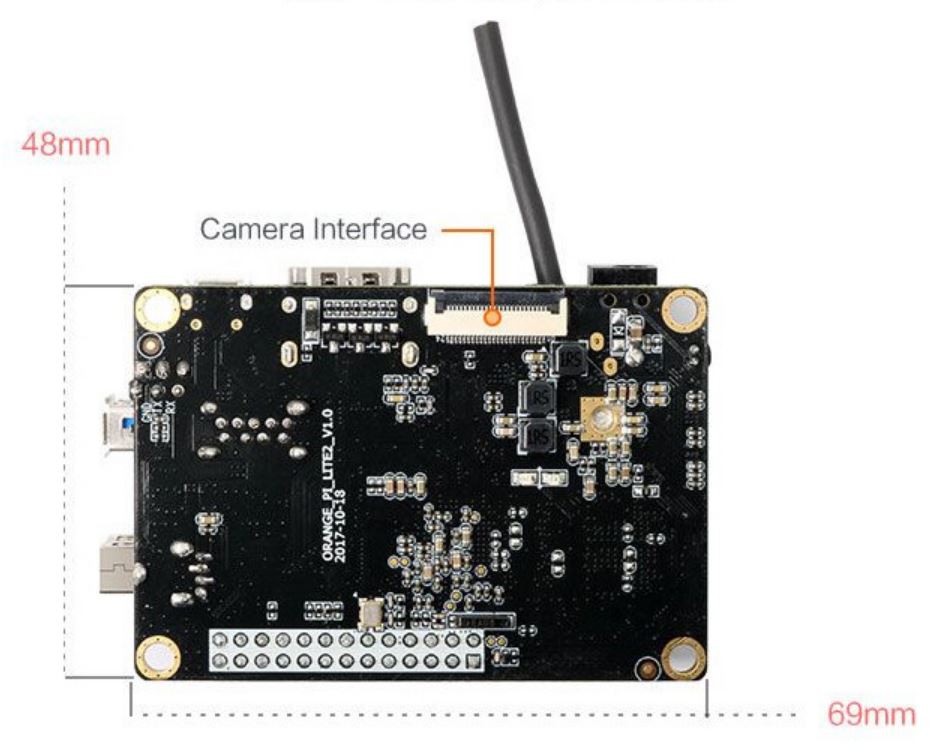

- Product size: 69 mm × 48mm
- Weight: 50 g
