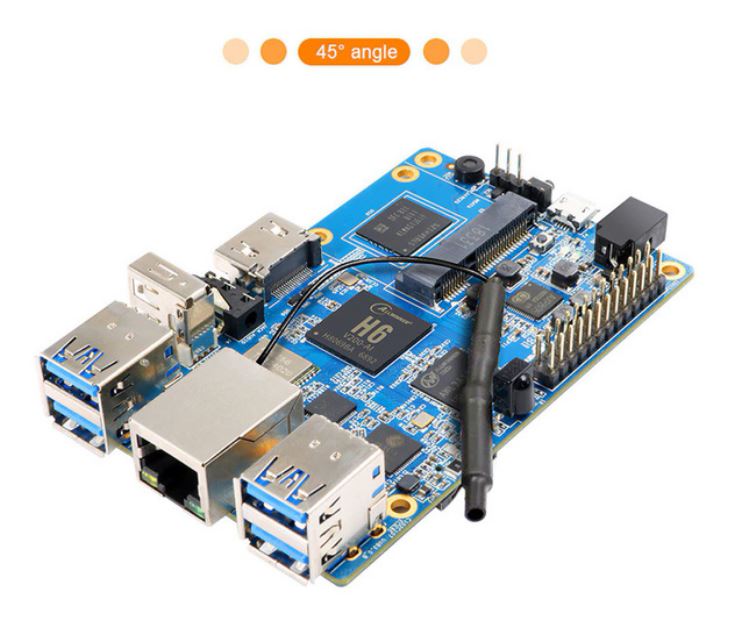

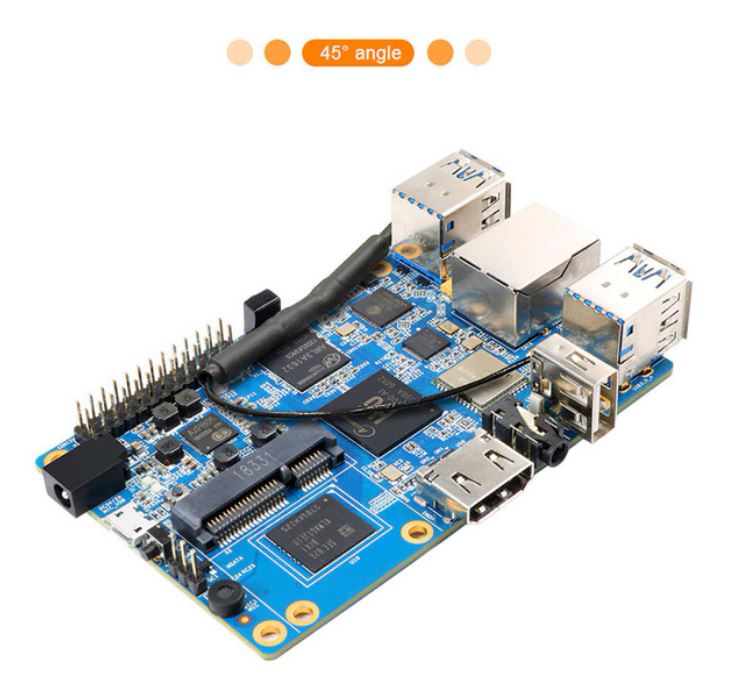

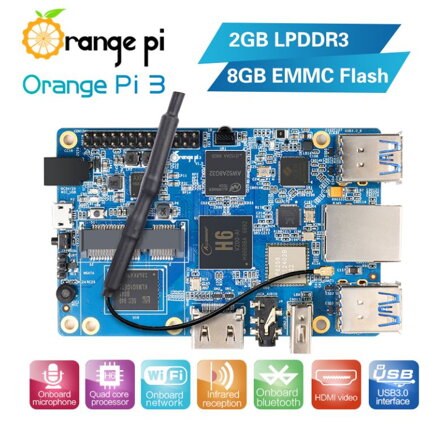

Orange Pi 3 LTS AllWinner H6
It's an open-source single-board computer. It can run Android 7.0, Ubuntu,Debian image. It uses the AllWinner H6 SoC, and equipped with 1GB/2GB LPDDR3 (shared with GPU) , an optional 8GB eMMC flash
Hardware specification:
|
Model |
OrangePi 3 LTS |
| CPU | H6 Quad-core 64-bit ARM Cortex™-A53 |
| GPU | • High-performance multi-core GPU Mali T720 • OpenGL ES3.1/3.0/2.0/1.1 • Microsoft DirectX 11 FL9_3 • ASTC(Adaptive Scalable Texture Compression) • Floating point operation greater than 70 GFLOPS |
|
Memory (SDRAM) |
2GB LPDDR3 (shared with GPU) |
|
Onboard Storage |
TF card (Max. 32GB) and 8GB eMMC |
|
WIFI+BT |
859, IEEE 802.11 a/b/g/n/ac, BT5.0 |
|
Onboard Network |
10/100M/1000Mb , ethernet RJ45 RTL8211 |
|
Audio Input |
MIC |
|
Audio Output |
HDMI 2.0a and 3.5 mm AV Jack |
|
Video Input |
HDMI 2.0a and CVBS |
| Video Decoding | H265/HEVC Main/Main10 profile@Level5.2 High-tier ;4K@60fps, up to 6Kx4K@30fps
H264/AVC BP/MP/HP@level5.1, MVC, 4K@30fps VP9，Profile 0/2, 4K@30fps AVS+/AVS JIZHUN profile@level 6.0, 1080P@60fps |
|
PCIE |
• Supports RC mode • Supports x1 Gen2(5.0Gbps) lane • Complies with PCI Express Base 2.0 Specification |
| Power Source | USB-C 5V/3A |
| PMU | AXP805 |
| USB 2.0 Ports | 2x USB 2.0 Host, one Micro USB 2.0 OTG |
| USB 3.0 Ports | 1x USB 3.0 Host |
| Low-level peripherals |

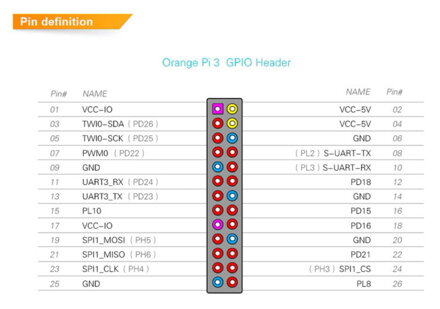

26 Pins Header |
| GPIO(1x3) pin | UART, ground |
| LED | Power led & Status led |
| IR Receiver | Yes |
| Key | Power(K1) |
| Supported OS | Android 9.0, Ubuntu, Debian |

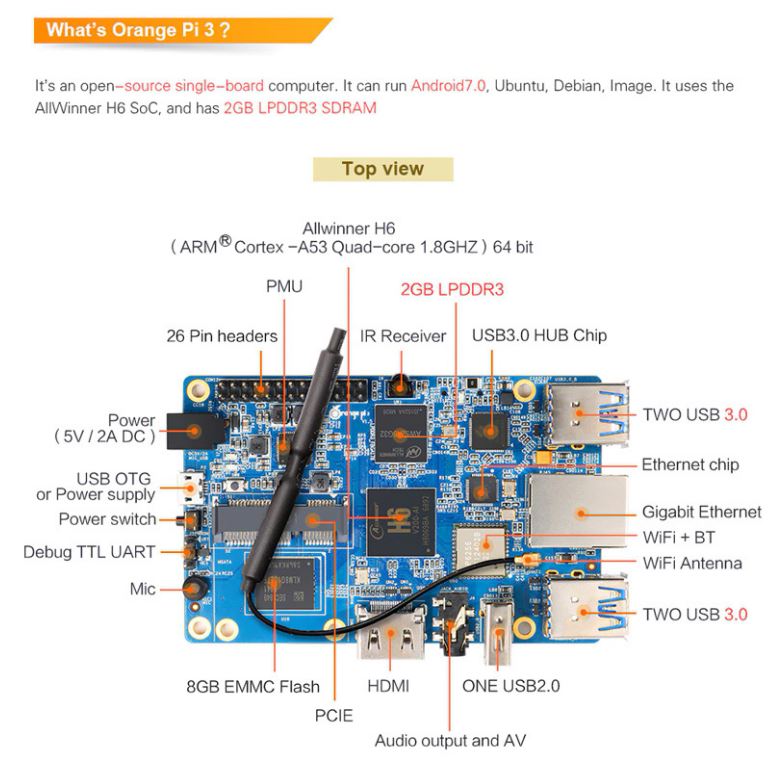

Interface definition:
- Product size: 56mm*85mm
- Weight:75g
