HC-06 USB do TL serial + bluetooth 2.0 modul master

Doručení probíhá do 2 pracovních dnů; e-mail: info@briv.cz

Převodník BLUETOOTH - USB HC-06. Malý USB Bluetooth RF modul, master.

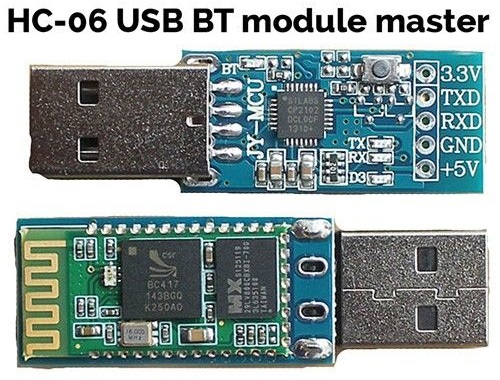

JY-MCU HC-06 USB Combined Bluetooth module with USB to UART bridge chip CP2102.

Product Features:

This product combines USB to UART port + HC-06 bluetooth master module.

Through the USB to serial port can access the bluetooth main module to send and receive data.
This module can comunicate onlywith HC-06/HC-05 slave module, it cannot for comunicate with other bluetooth devices as PC, PDA or smart phone.

The module has four LEDs: BT - bluetooth status, D3 - USB port ready status, RX- receive and TX - send.
Four led indicator lights: indicator of USB to UART bridge ready, transmitting, receiving, and Bluetooth module state.

The module's reset key can be pressed for clear the pairing information and for re-search for slave module to pair.
When the bluetooth is not connected, the module can be directly acessed trough the USB/serial port and configured with AT instructions/commands.

Product Data Sheet:

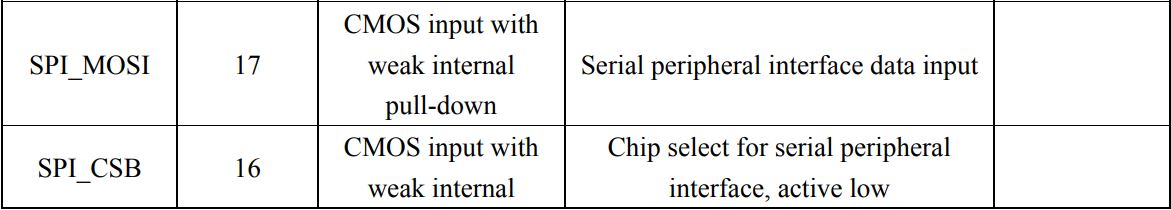

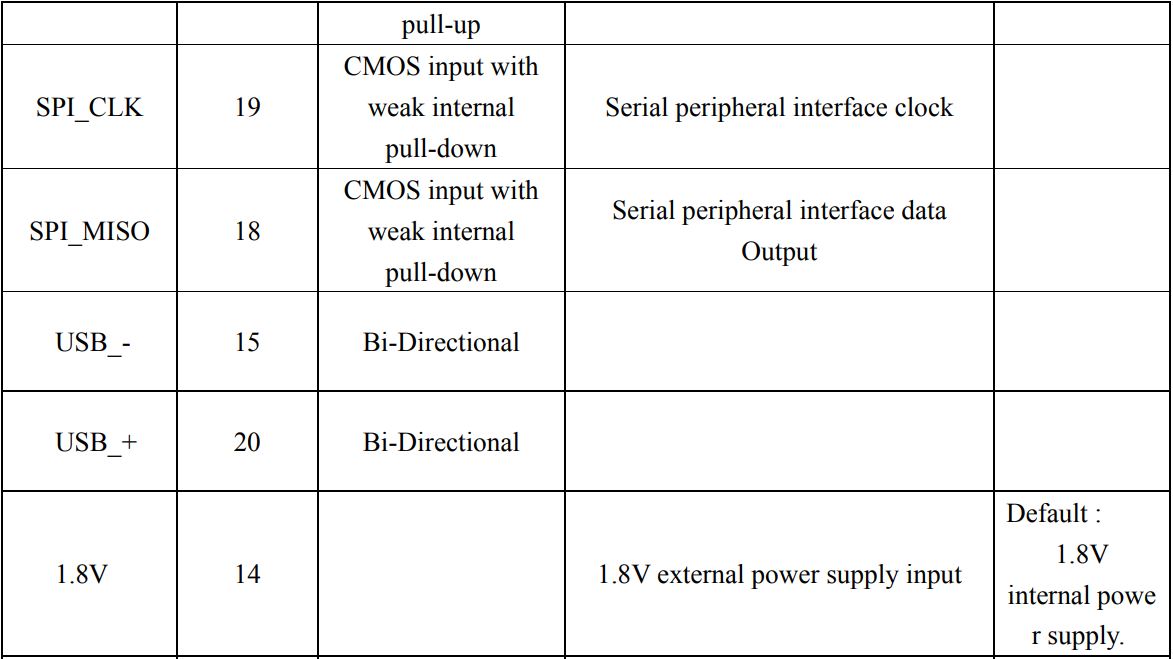

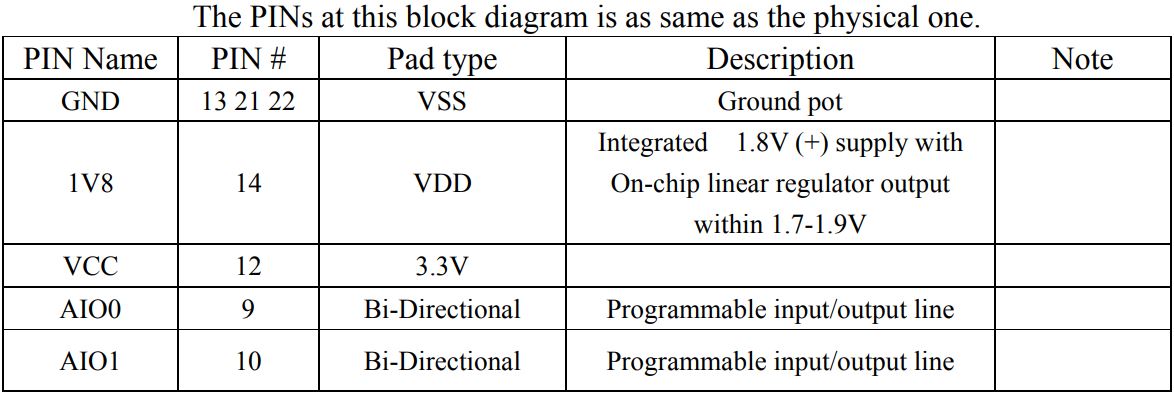

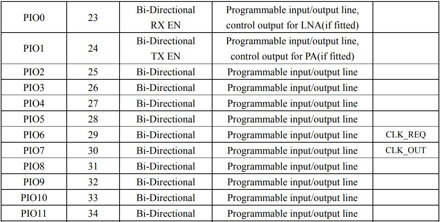

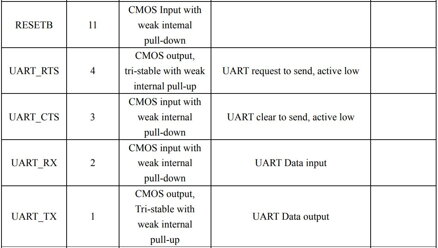

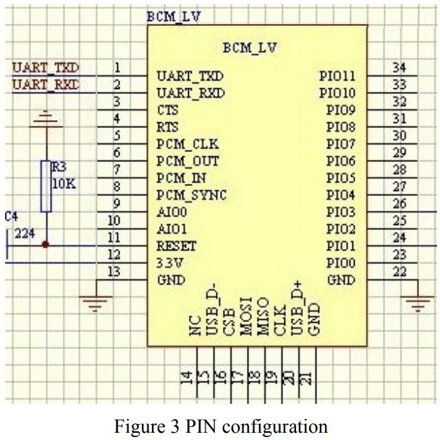

• Product's picture, Feature, Pins description, The parameters and mode of product, Block diagram, Debugging device, Characteristic of test, Test diagram, AT command set

Balení obsahuje:

• 1x vývojový USB modul HC-06
