Nano Pi Mini Shield pro NEO Core/Core2

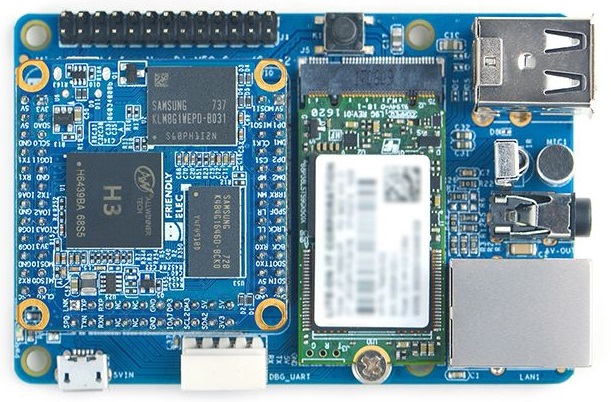

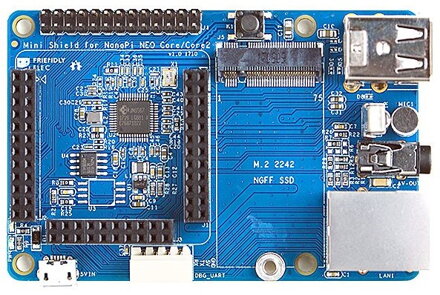

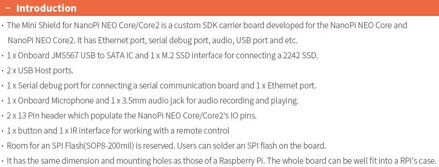

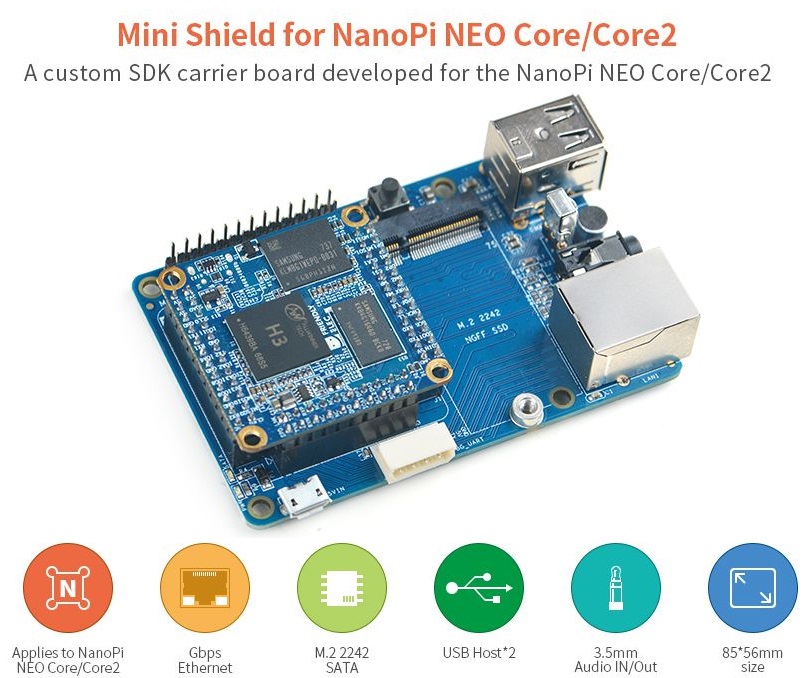

The Mini Shield for NanoPi NEO Core/Core2 is a custom SDK carrier board developed for

the NanoPi NEO Core and NanoPi NEO Core2. It has Ethernet port, serial debug port, audio, USB port and etc.

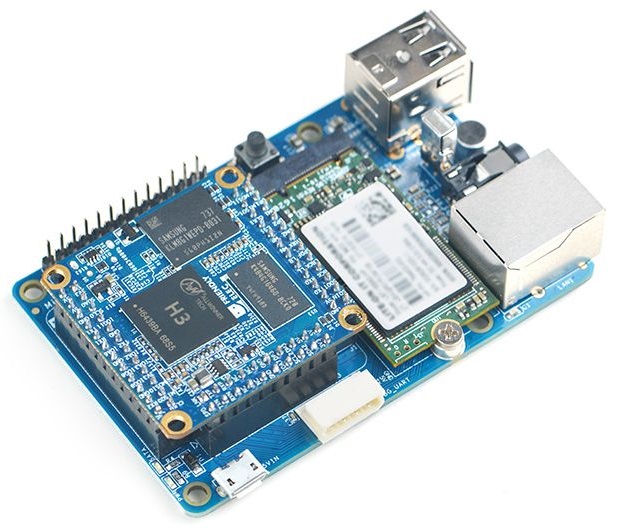

• 1 x Onboard JMS567 USB to SATA IC and 1 x M.2 SSD interface for connecting a 2242 SSD.
• 2 x USB Host ports.
• 1 x Serial debug port for connecting a serial communication board and 1 x Ethernet port.
• 1 x Onboard Microphone and 1 x 3.5mm audio jack for audio recording and playing.

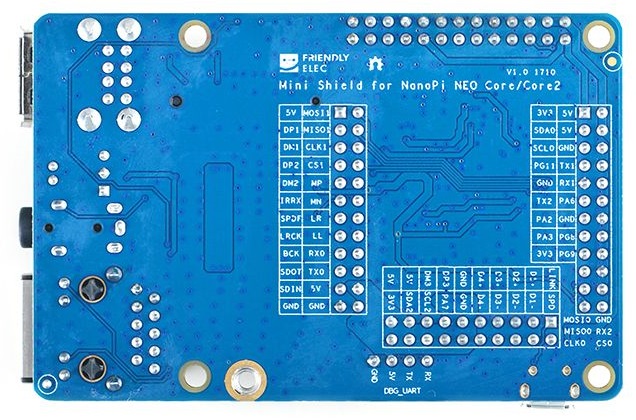

• 2 x 13 Pin header which populate the NanoPi NEO Core/Core2's IO pins.
• 1 x button and 1 x IR interface for working with a remote control
• Room for an SPI Flash(SOP8-200mil) is reserved. Users can solder an SPI flash on the board.

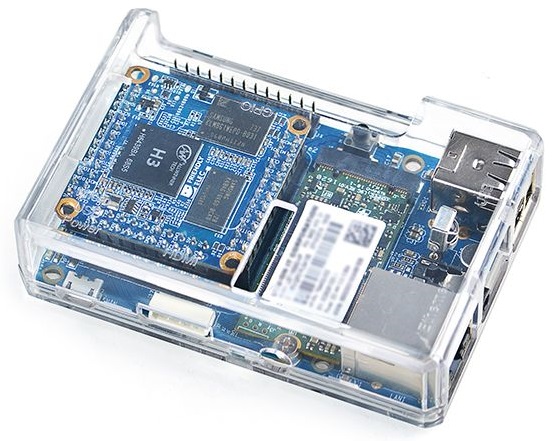

• It has the same dimension and mounting holes as those of a Raspberry Pi. The whole board can be well fit into a RPi's case

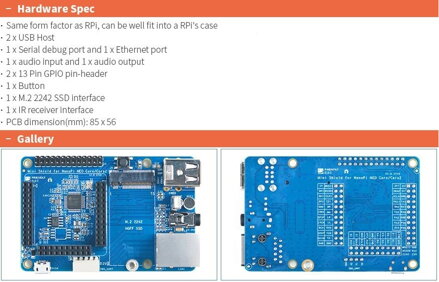

Hardware specification:

• Same form factor as RPi, can be well fit into a RPi's case
• 2 x USB Host
• 1 x Serial debug port and 1 x Ethernet port
• 1 x audio input and 1 x audio output
• 2 x 13 Pin GPIO pin-header
• 1 x Button
• 1 x M.2 2242 SSD interface
• 1 x IR receiver interface
• PCB dimension(mm): 85 x 56

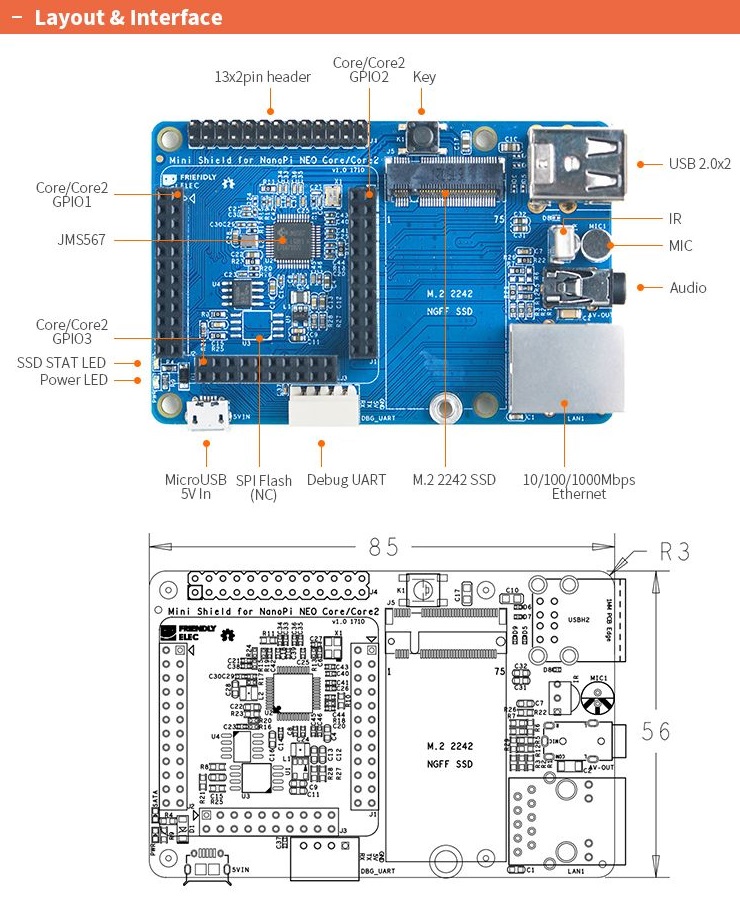

• Hardware Spec/Layout/Hardware Setup/Application

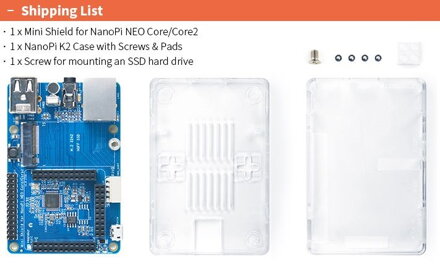

Obsah balení:

• 1x Nano Pi Mini Shield
• 1x Plastové pouzdro, průhledné
