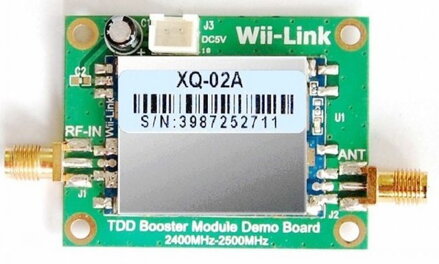

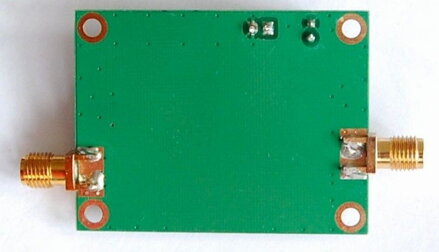

Wii-link WiFi zesilovač signálu 2400MHz-2500MHz TDD booster board with module XQ-02A
XQ-02A is a bi-directional signal amplifier module designed for the 2.4GHz band all kinds of applications, it si compact, easy-type application mode, making 2.4GHz RF wireless products become part of the design is extremely simple.
Built-in high-speed transceiver circuit switching automatic identification, can automatically switch to send and receive status, no wifi control chip gives control signals to automatically work, therefore compatible with any WiFi solution.
Can be applied to various types of signal transmission distance for WiFi connection stability and the special requirements of the occasion, such as: Advertising, wireless network player, high-power wireless router, high-power wireless card, high power outdoor AP, wireless cameras.
Specifications:
- Model: XQ-02A-B1
- Based on: XQ-02A
- Working frequency: 2400MHz-2500MHz
- Receive gain: 10dB
- Transmit gain: 11dB
- Accept the noise factor: ≤3.0dB
- Input power rnge: 4dBm - 20dBm
- Maximum transmit power (Peak Power): 33dBm (2W)
- Power supply: 5V DC
- Dimensions: 50 x 38mm
- HomePage tinySA® wiki
Package includeds:
- 1 x WiFi Signal Amplifier Module

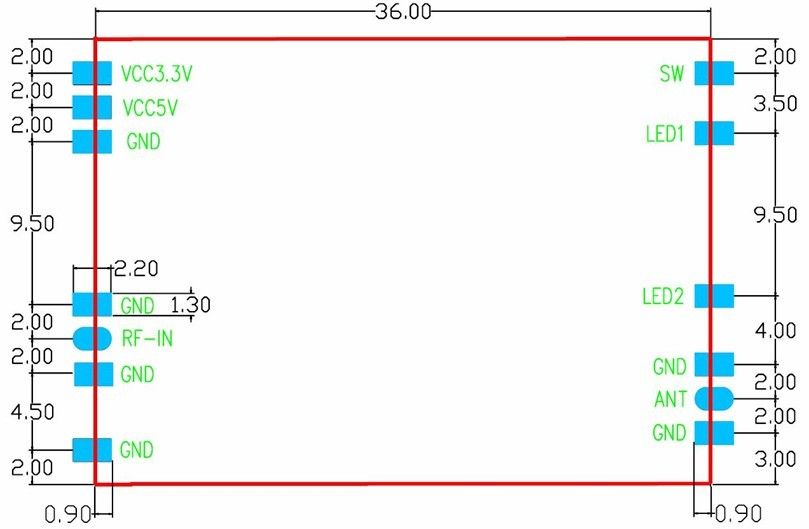

Module pin definitions:

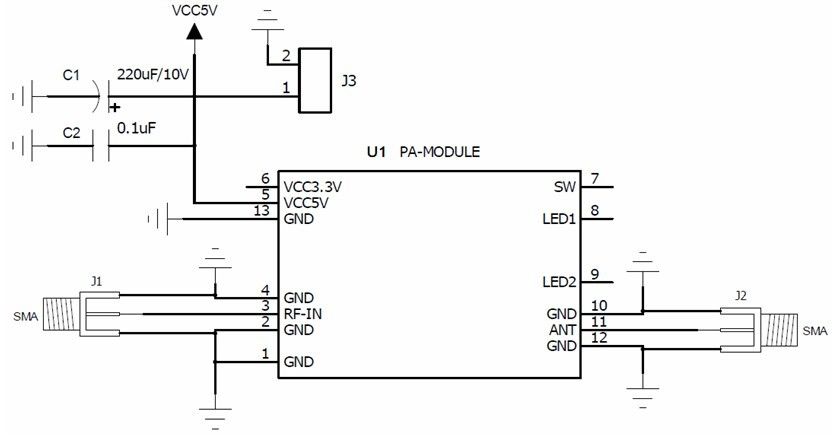

Reference schematic as follows:
- 1. RF-IN port connected to the original circuit RF output port.
- 2. ANT port connected to antenna.
- 3. Part of the vacant pins designed for specific applications aside, the general application can be vacant.
- 4. RF-IN and ANT pin, you can directly butt welding with the floor or via a radio frequency RF circuit wire bonding pads.

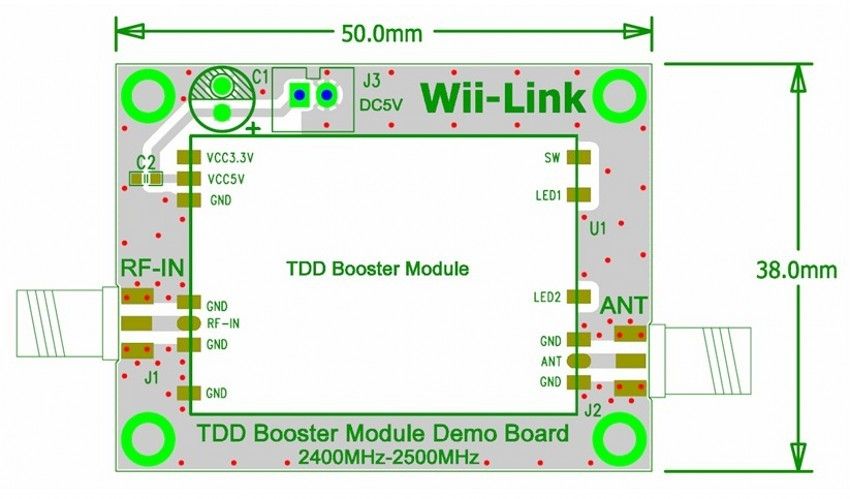

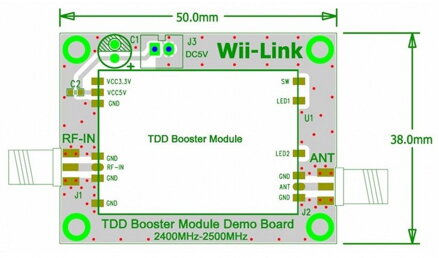

Board dimenssions:
