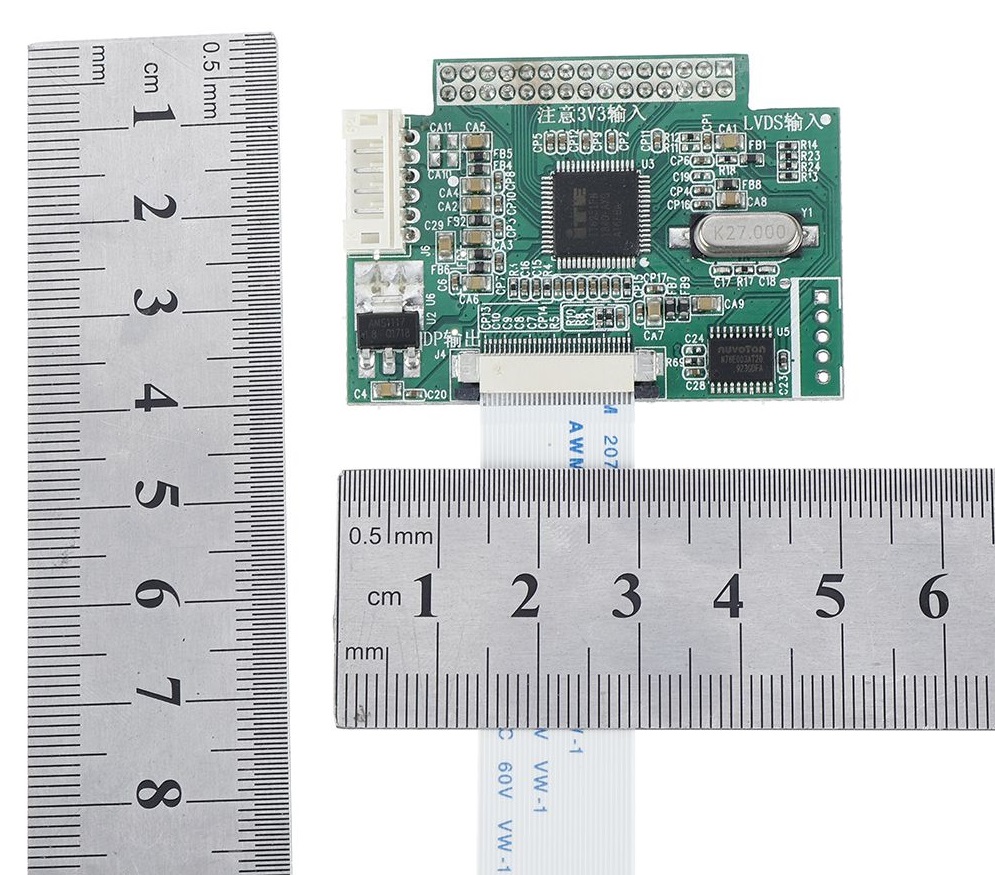

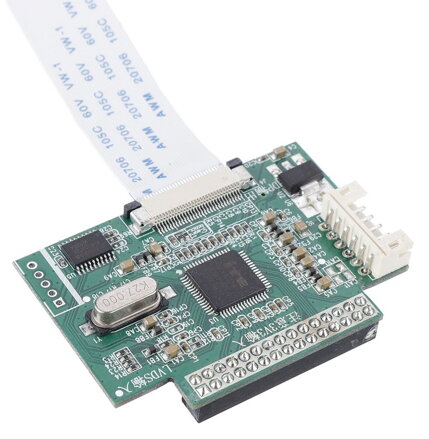

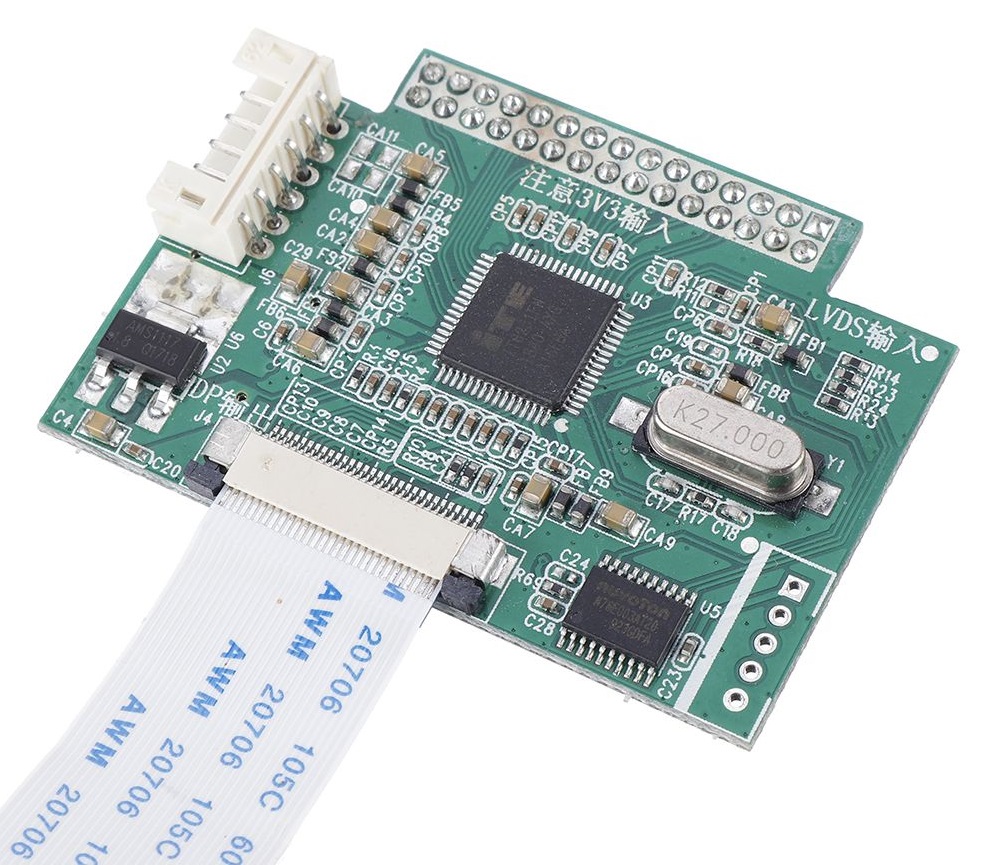

LVDS 30P do eDP deska, adaptér
- Model: DP_N173HGE V6.2.4
- Vstup: LVDS 30pin
- LVDS napětí: 5V
- Výstup: eDP 30PIN FPC
- Rozlišení: 1366*768/1920*1080
Balení obsahuje:

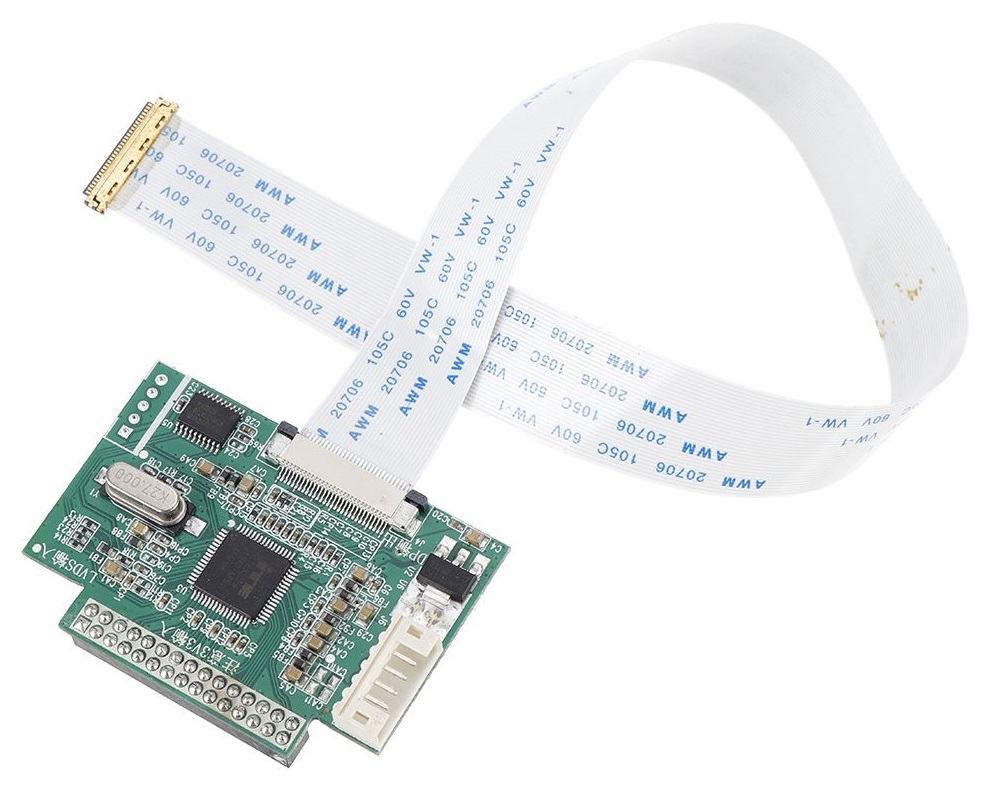

- 1× LVDS adaptér
- 1x eDP FPC kabel
- 1x DC kabel
- 1x LVDS 20cm kebel
Supports 1/2/4 lane EDP-1366*768 / 1920*1080
EDP signal output I-PEX 20455-30PIN
LVDS input: DuPont 30P 2.0 pitch
No short-circuit any pins, the default resolution is: 1920*1080, 1920*1200

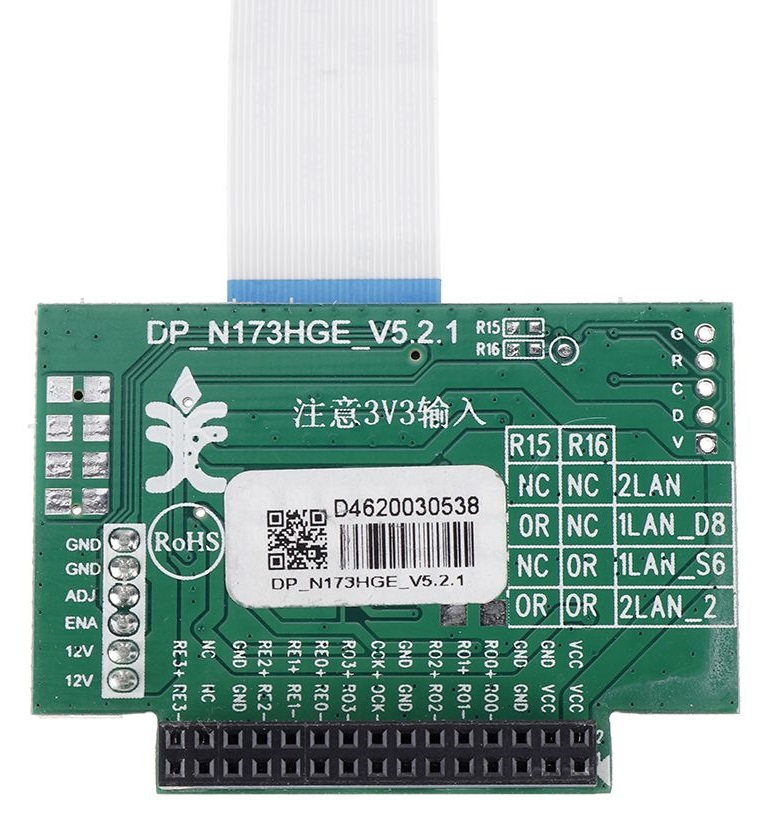

With short-circuit R16 resistor is: 1366*768, 1280*800, 1440*900, 1680*1050, 1600*900
R15 short circuit is connected to 1 lane EDP LCD screen
R16 short circuit is connected to 4 lane EDP LCD screen
R15, R16 open circuit is connected to 2 lane EDP LCD screen
Note:
- The jumper on the LVDS driver board must jump to the 3.3V position to avoid burning the EDP adapter board
- If the backlight is not bright, you can short the ADJ-ENA pin
Partially applicable EDP models (incomplete list):
- 1. B116XAN02.0_1LANE
- 2. B113HAN03_0_HW-1A
- 3. B140RW01 V2
- 4. B140XTN02.4(0A)_1LANE
- 5. B140XW01_V4
- 6. B156HAN01.1(0A)_2LANE
- 7. B173RTN01.1LANE
- 8. CLAA133UA03_CW
- 9. HN133WU1-100
- 10. HV121WX5-121
- 11. LP156WF1-TPB1
- 12. LP156WF4-SPB1
- 13. LTN141AT05 10A
- 14. N116HSE-EA1
- 15. N116HSG-WJ1
- 16. N133HSE-EA1
- 17. N140B6 D11
- 18. VV13F009G10
