AC/DC Uzavřený Napájecí Zdroj (PSU), ITE, ITE, 1 Výstupů, 9.6 kW, 24 VDC, 400 A

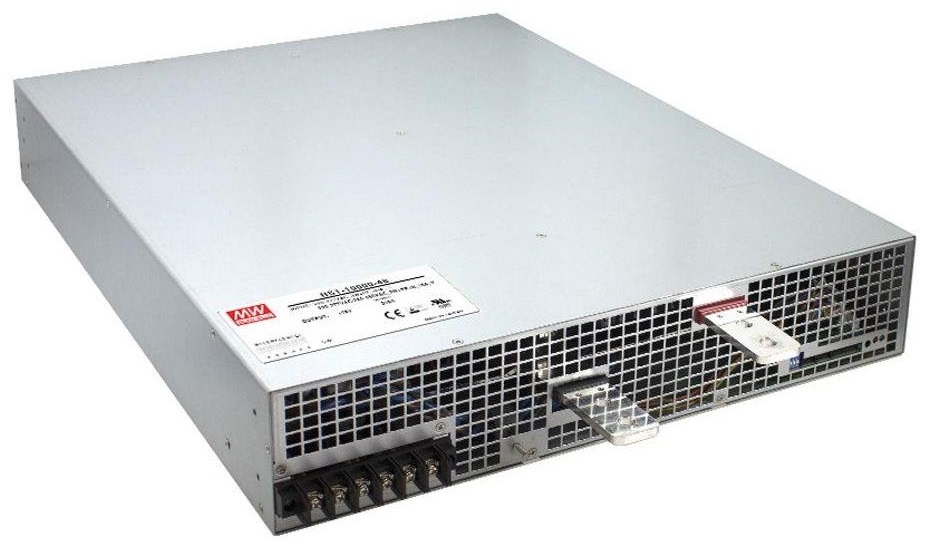

RST-10000-24 is a RST-10000 series 10KW single output enclosed type AC/DC power supply. This offers the models with the DC output mostly demanded from the industry.
It is cooled by the built-in fan with fan speed control, working for the temperature up to 70°C.
It provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power.
It includes short circuit, overload, over voltage, over temperature, fan fail protection.
Application includes factory control or automation apparatus, test and measurement instrument, laser related machine, burn-in facility, RF application, electric scooter or vehicle charger station, constant current source.
Approved by UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, IS13252(Part1)/IEC60950-1, EAC TP TC 004.
- Input voltage range from 3 3-wire / 196 to 305VAC, 3 4-wire / Y 340 to 530VAC, output voltage is 24V
- Output rated current is 400A, output rated power is 9600W, typical efficiency is 88.5%
- Built -in active PFC function, forced air cooling by built-in DC fan
- Output voltage and constant current level programmable, active current sharing upto 2000W(1+1)
- Built-in remote ON-OFF control / remote sense / auxiliary power / alarm signal
- 5 years warranty
- Working temperature range from -30 to +70°C
- Dimension is (L x W x H) 540 x 424 x 83.5mm
- Hmotnost (kg): 23.5
