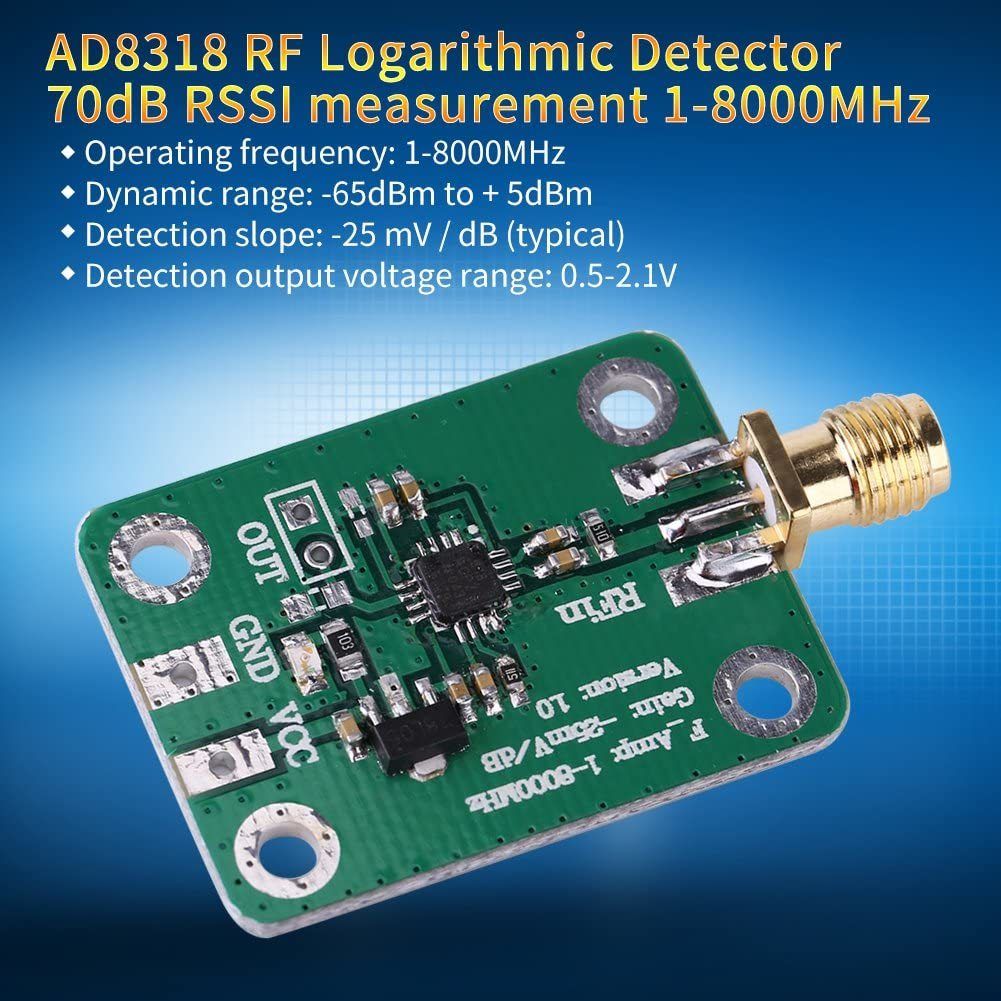

AD8318 RF logaritmický detektor 70dB, měření RSSI, měřič výkonu 1-8000MHz

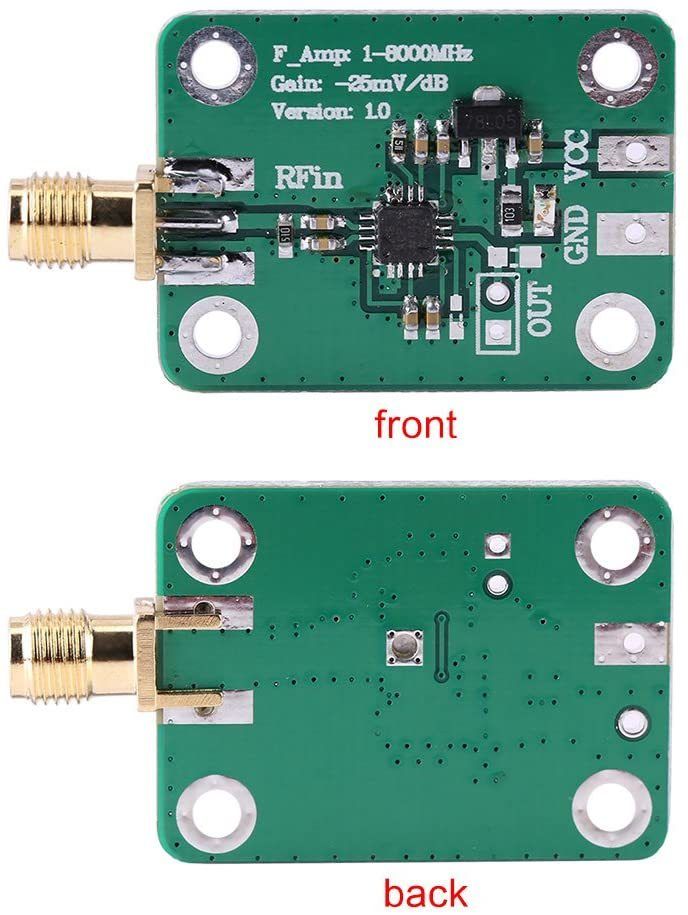

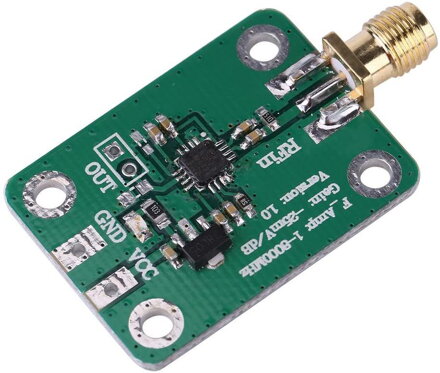

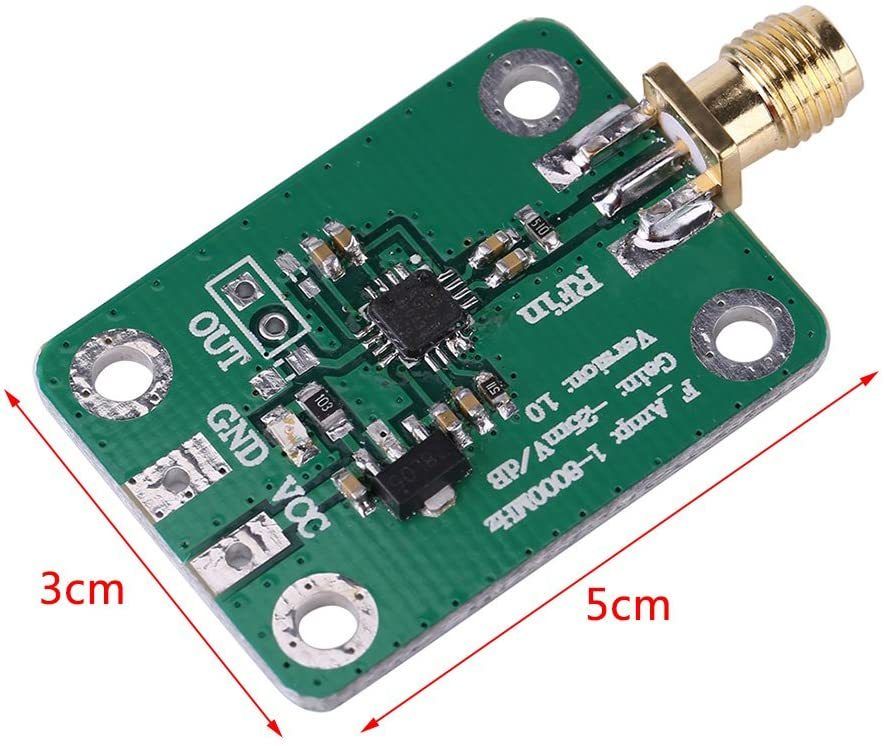

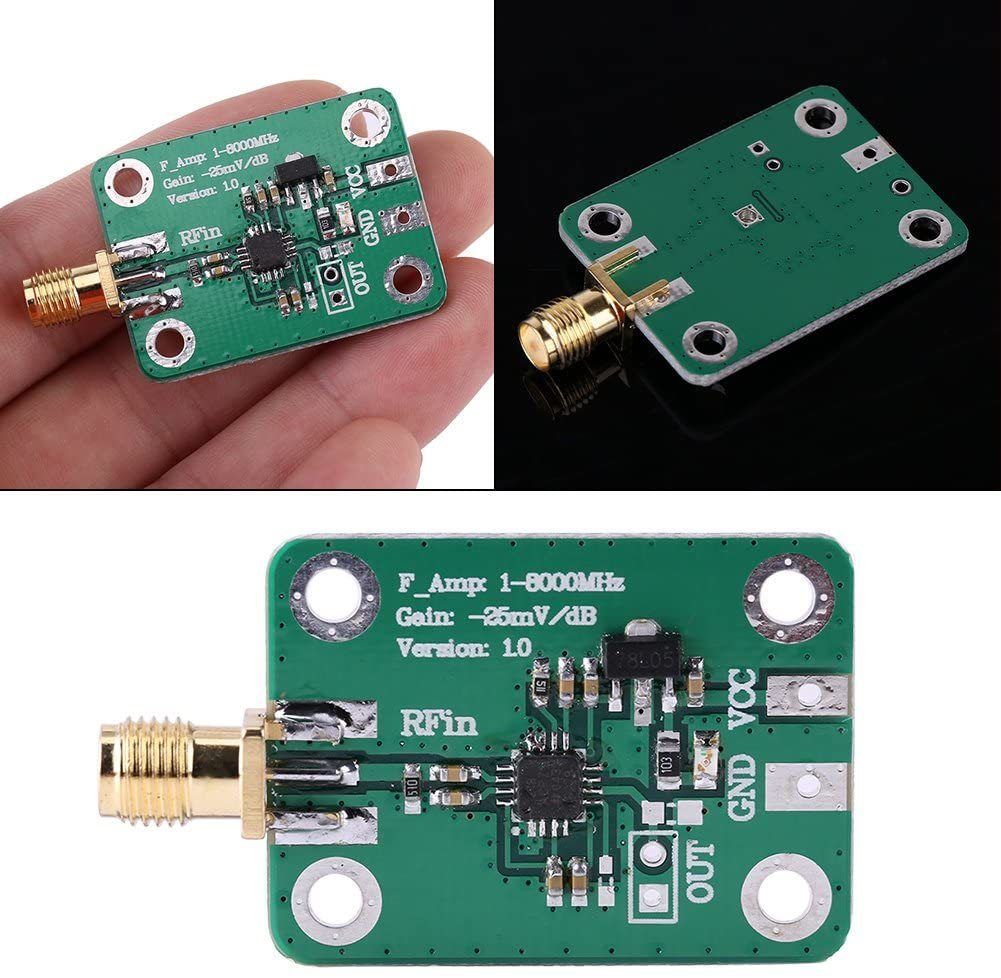

The RF detector is based on Analog Devices AD8318 chip.
It is designed with a power supply voltage regulator circuit, which makes the detection accuracy tend to official data. The operating frequency range is 1-8000MHz. It can detect -65--5dBm RF signal to DC voltage.
The form outputs the detected signal strength (in dBm, logarithmically detected), and converts such RF signal into a DC voltage output. The amplitude or power of the RF signal corresponds to the output voltage.
Signal strength indication RSSI, spectrum analyzer, gain control, etc. can be done.
Specification:
- Working frequency: 1-8000MHz
- Dynamic range: -65dBm to +5dBm
- Detection slope: -25 mV/dB (typical)
- Detection output voltage range: 0.5--2.1V
- Power supply voltage: 7--15VDC (including power supply voltage regulator circuit)
- Input impedance: 50 ohms

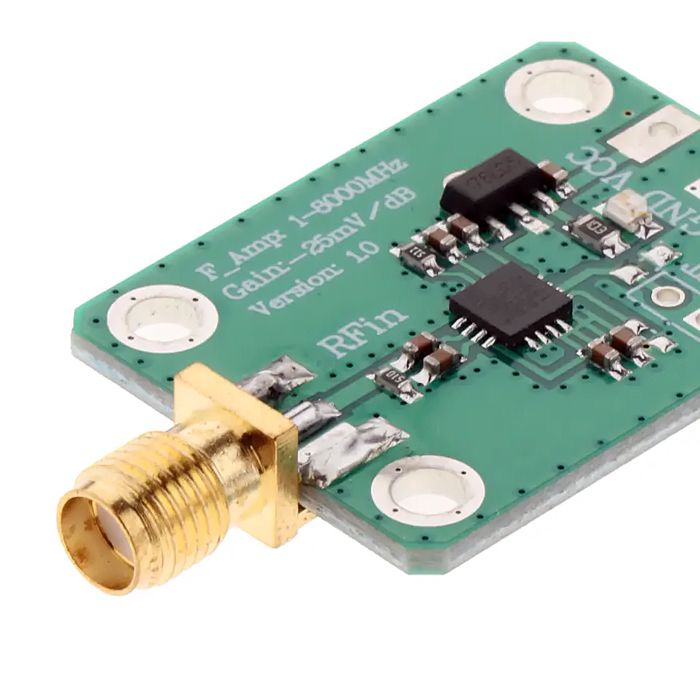

- RF interface: standard SMA female
- Datasheet
Obsah balení:
- 1x AD8318 deska
