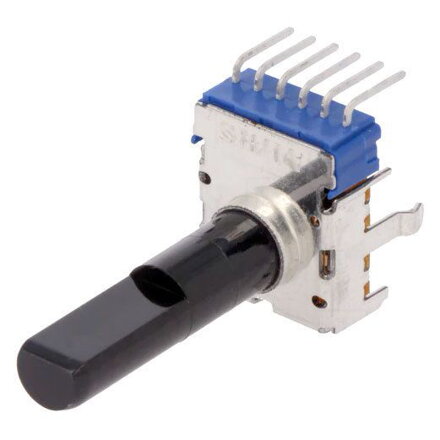

RK12L123000E carbon rotary potentiometers RK12L by Alps

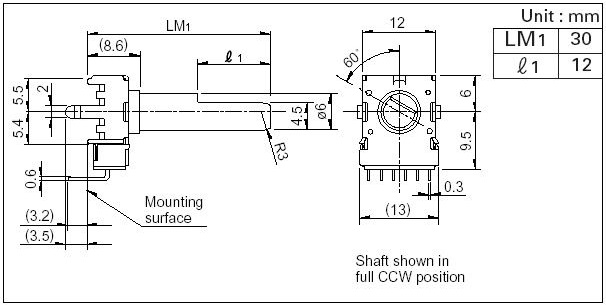

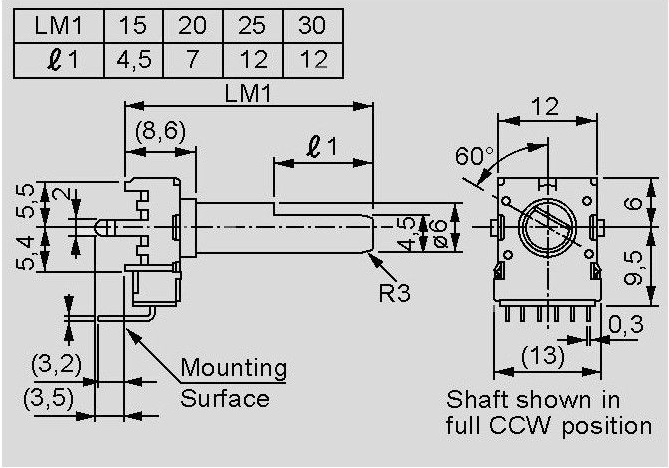

Specification:
- model: RK12L123000E
- series: RK12L
- resistance: 50kΩ
- mono linear (B) and positive logarithmic (A)
- rated power: 0.05W
- shaft: plastic, Ø6mm
- housing: 12mm
- shaft length: 30mm
- design: dual
- type: vertical
- operating voltage, max.: 50VAC
- insulation voltage (1 min): 300V AC
- insulation resistance: >100MW / 250 VDC
- resistance tolerance: ±20%
- rotation angle, mechanical: 300° ±5°
- operating torque: 2...15mN*m
- lifetime: 15x103 operations
- stopper strength, max.: 0.5mN*m
- temperature range: -10°C...+70°C
- by Alps
