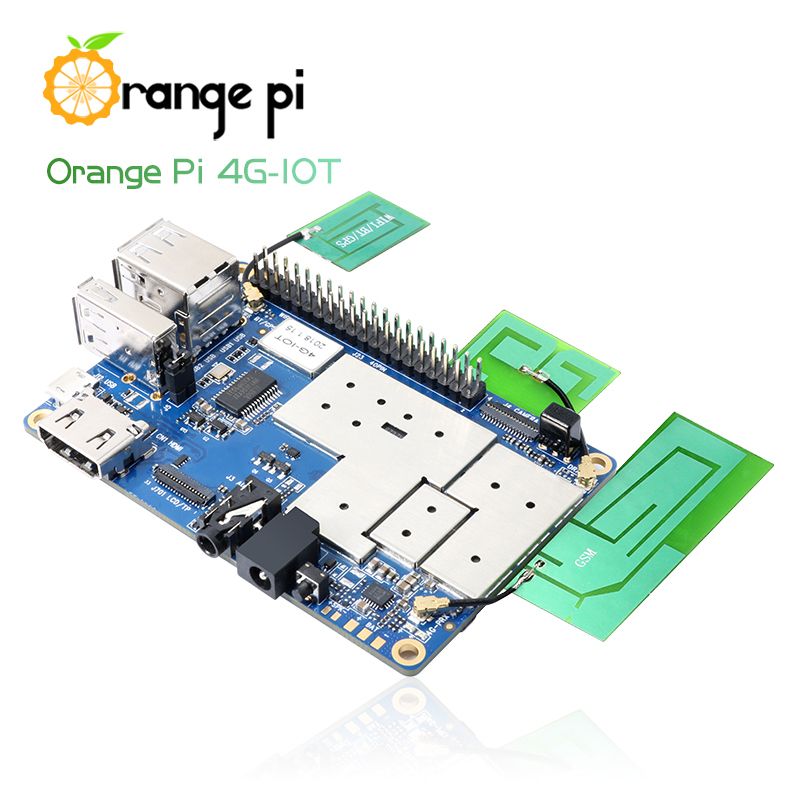

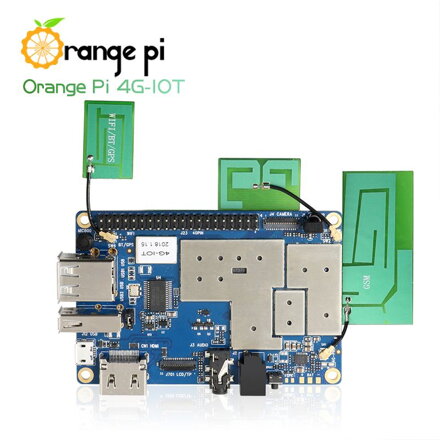

Orange Pi 4G-IOT MTK MT6737 SoC 1GB DDR3 SDRAM

NOVINKA

It’s an open-source single-board computer. It can run Android 6.0 Image. It uses the MTK serial of MT6737 SoC, and has 1GB DDR3 SDRAM.

1930 Kč s DPH

1930 Kč s DPH Sleva 0%

ks a víc /ks

Zavřít

Zavřít

Import kód: 50475

Dostupnost: Na dotaz
skladem: 0 ks
Doručíme dne:

Výrobce: Orange Pi

Doručení probíhá do 2 pracovních dnů; e-mail: info@briv.cz

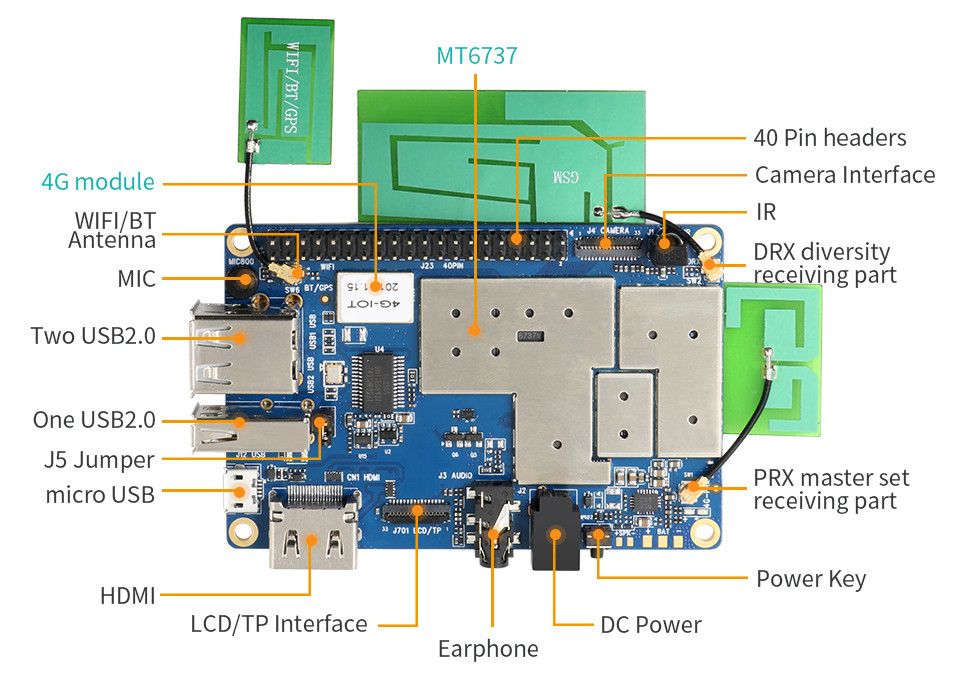

Specifikace:

Processor	MT6737
CPU	Quad core ARM® Cortex-A53, Main frequency up to 1.25GHz
GPU	• ARM Mali-T720 MP1
Memory	1GB DDR3
Emmc	8GB EMMC Flash
Wireless	WIFI / BT / FM / GPS Four in one
Radio frequency	GSM: 850/900/1800/1900 WCDMA: B1/B2/B4/B5/B8 TD-CDMA CDMA2000 FDD-LTE: B1/B2/B3/B4/B7/B17/B20 TDD-LTE: B38/40/41B
Display	HD
Capacitance touch	Support
Camera	13M （25pin ZIF Connector）
Accelerometer Sensor	Support
IR Control	Support (Adapted iDroid remote controller)
Fingerprint Identification	Support
SIM Card	mini Single SIM Card
TF Card	Support hot-plugging
Audio	Earphone: For audio input / output Mic: For audio input
USB	USB Host × 3: Support OTG Micro USB × 1: Only for writing image
LED	Power Indicator LED:Red Status Indicator LED: Green
Key	Power
HDMI	Support
Low-level peripherals	40pin Headers: 1.8V, SPI × 2 , I2C × 3, UART × 2
Power	DC : 5V 2A Battery:Connection through a weld plate
Programming support	C、C++、Kotlin、Java、Shell、Pyhon

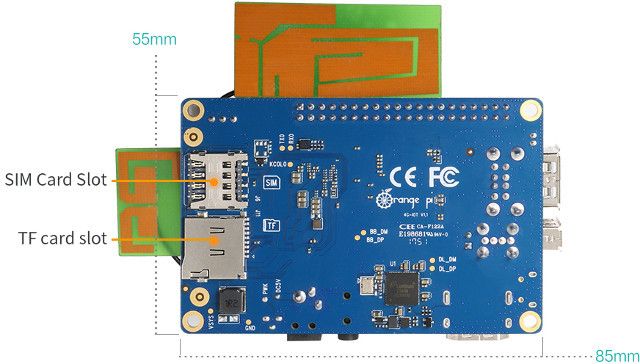

Size:	55mm × 85mm
Weight:	43g
