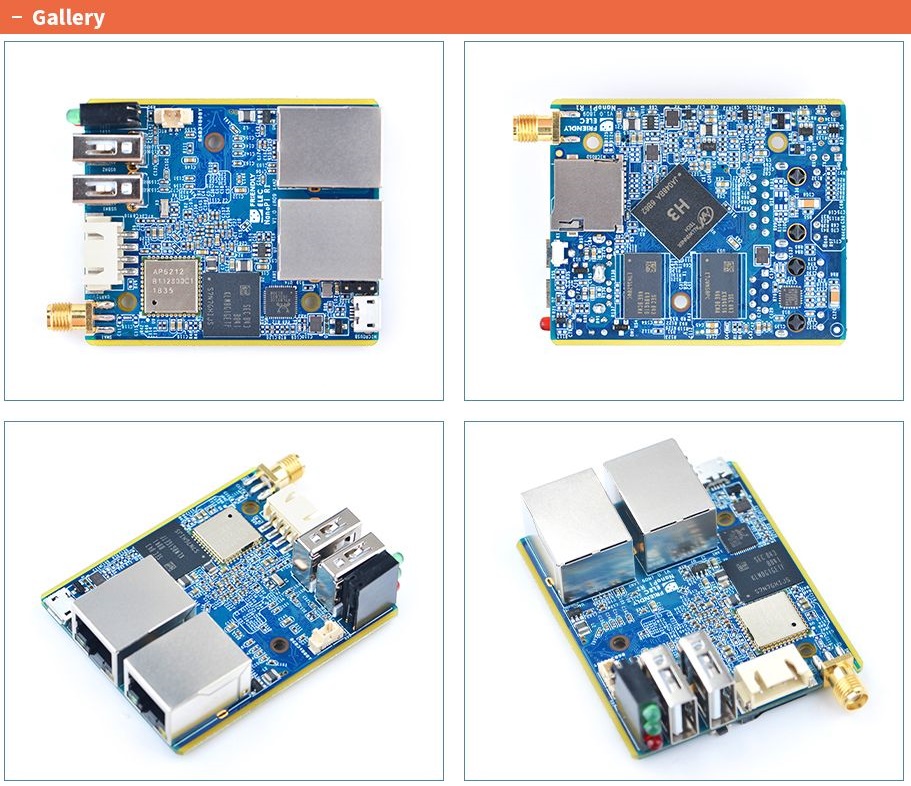

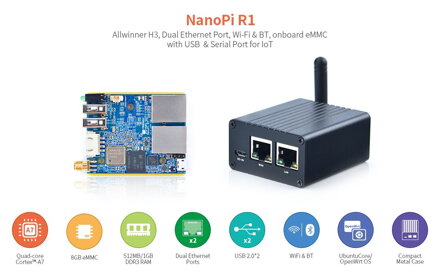

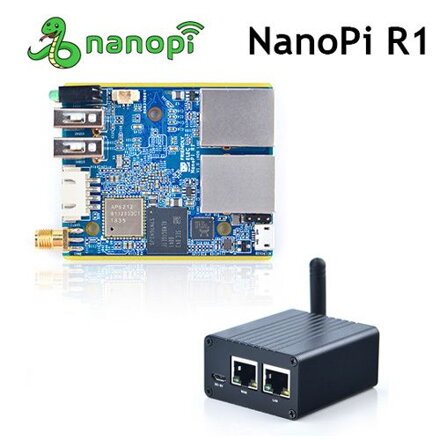

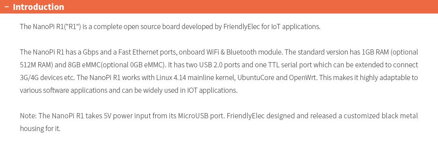

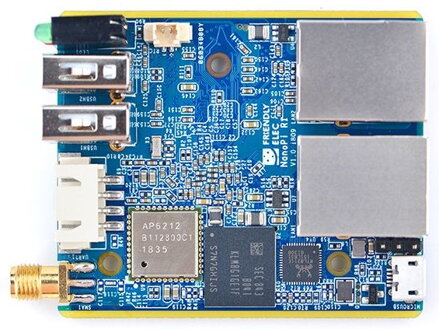

The NanoPi R1("R1") is a complete open source board developed by FriendlyElec for makers, hobbyists, fans and etc. The NanoPi R1 has one Gbps Ethernet port and one Fast Ethernet port.
It has an onboard 2.4G Wi-Fi module. FriendlyElec ported OpenWRT to the R1. With some additional settings it will work like a router.Its good networking performance and features make it a good platform for various network applications.
Network:
- 10/100/1000M Ethernet x 1，
- 10/100M Ethernet x 1

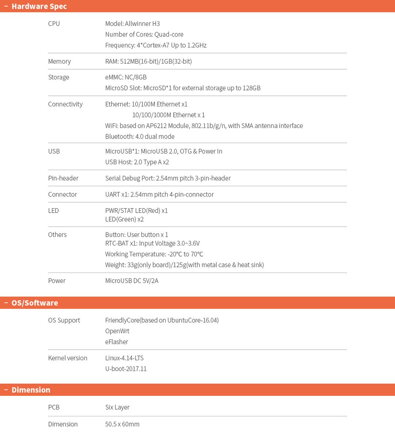

Specifications:
- Model: R1
- CPU: Allwinner H3, Quad-core Cortex-A7 Up to 1.2GHz
- DDR3 RAM: 512MB/1GB
- Storage: NC/8GB eMMC
- WiFi: 802.11b/g/n, with SMA antenna interface
- Bluetooth：4.0 dual mode
- USB Host: Type-A x2
- MicroSD Slot x 1
- MicroUSB: for OTG and power input

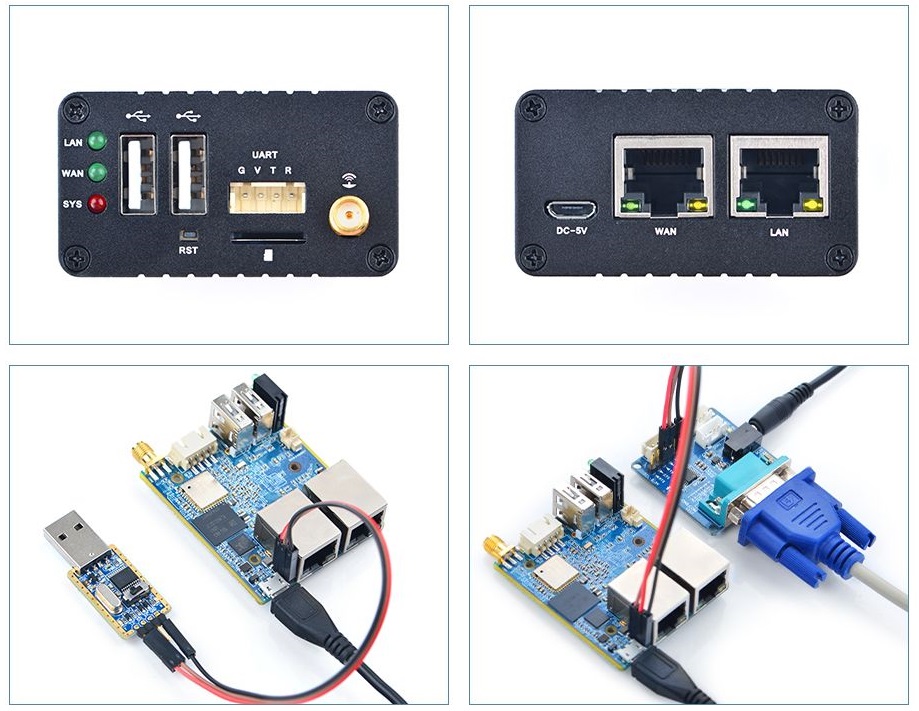

- Debug Serial Port: 3Pin 2.54mm pitch pin-header
- UART: 4Pin 2.54mm pitch pin-header
- LED: LED x 3
- KEY: KEY x 1
- PC Size: 50.5 x 60mm
- Power Supply: DC 5V/2A
- Temperature measuring range: -40℃ to 80℃
- OS/Software: U-boot，Ubuntu-Core，OpenWRT
- Weight: xxg

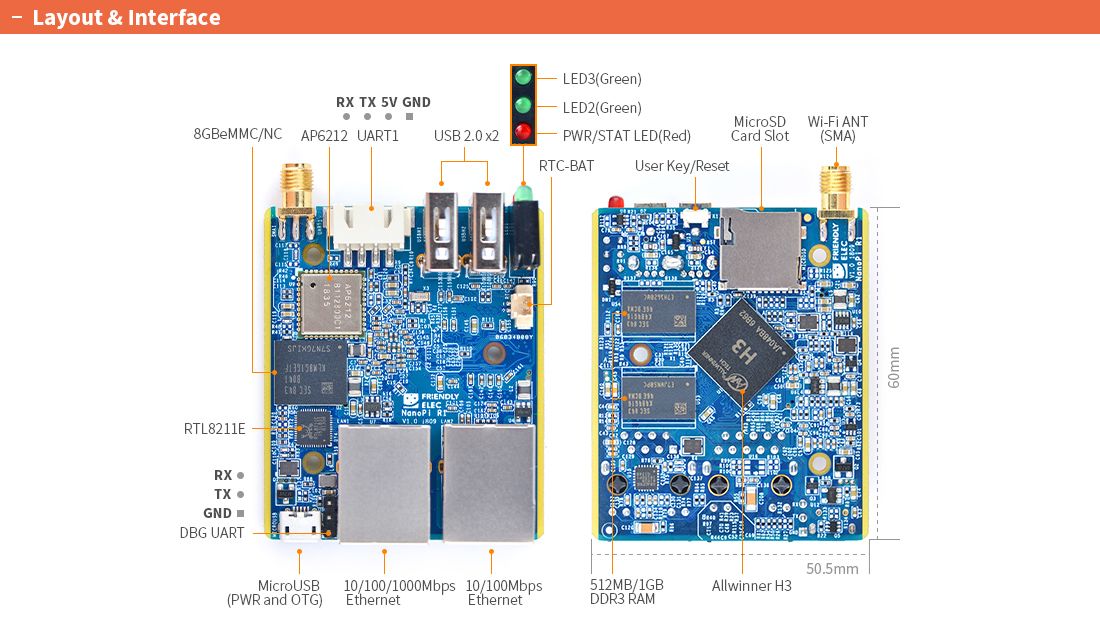

- NanoPi R1 - Introduction, Hardware Spec, Diagram, Layout and Dimension
