Winbond W25Q Serial NOR Flash spiFlash
- Model: W25Q series
- Package: SOP-8/PDIP-8
- FeaturesSingle/Dual/Quad SPI and QPI operation
- Uniform 4KB erasable sectors & 32KB/64KB erasable blocks
- 65,536 pages (256 bytes), page program in 0.7mS (typ.)
- Continuous Read with 8/16/32/64 BByte Wrap
- Quad Peripheral interface (QPI) reduces instruction overhead
- Clock operation up to 104MHz (208/416MHz equivalent with Dual/Quad I/O Read)
- 2.7 to 3.6V power supply
- 4mA active read current, 1µA power down current
- -40° to +85°C operating range
- Program/Erase Suspend/Resume, Suspend Status Bit
- Factory-programmed unique ID
- Electronic ID with Dual/Quad I/O, Hardware and software write protection for top or bottom blocks
- Volatile & Non-volatile Status Register Bits
- Lock-Down and OTP protection
- Serial Flash Discoverable Parameters (SFDP)
- 3X256byte Security Registers with OTP locks
- Complement Array Protection Bit
- Individual Block/Sector Write Protection
- Software Reset & confiqurable hardware/RESET pin
- Programmable output driver strength
Datasheets:
- W25Q16JVSSIM 16MB SOP-8

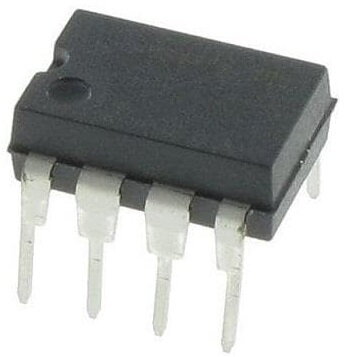

- W25Q32JVDAIQ 32MB PDIP-8
- W25Q32JVSSIQS 32MB SOP-8
- W25Q64JVSSIM 64MB SOP-8

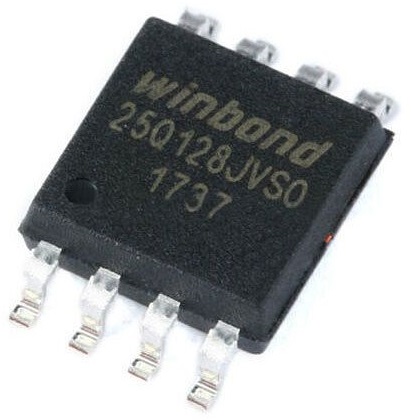

- W25Q128JVSIM 128MB SOP-8
