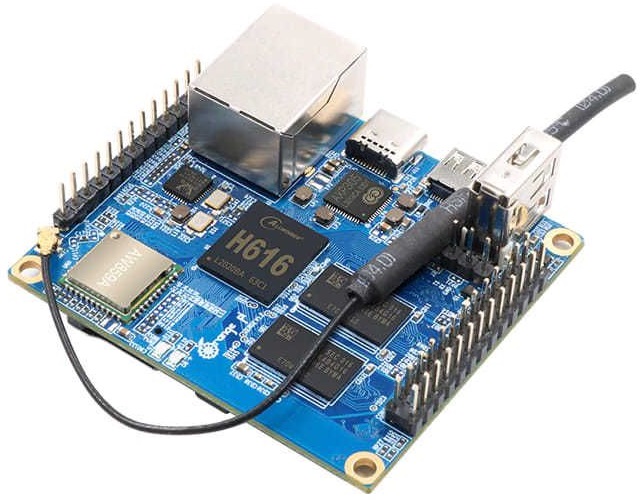

OrangePi Zero2 H616 1GB RAM
Deska Orange Pi Zero2 je nyní zpět s dalšími konstrukčními prvky, vybavená novějším procesorem Allwinner H616 podporujícím Android 10 a různými distribucemi Linuxu, jako je Ubuntu a Debian.
Specifikace:
- Model2 Zero2
- SoC – Allwinner H616 quad-core Arm Cortex-A53 processor @ up to 1.5 GHz with Arm Mali G31 MP2 GPU with support for OpenGL ES 3.2 and OpenCL 2.0
- Memory – 1GB DDR3
- Storage – 2MB SPI flash and MicroSD card slot
- Audio – Analog stereo audio via 13-pin header, and digital audio via micro HDMI port
- USB – 1x USB 2.0 host port, 2x USB 2.0 interfaces via 13-pin header
- Debugging – 3-pin UART header for serial console
- Misc – Power & status LEDs, power key
- Power Supply – 5V via USB Type-C port
- Dimensions – 60 x 53 mm
- Weight – 26 grams
Video Output:
- Micro HDMI 2.0a port up to 4Kp60
- Video composite (CVBS) via 13-pin header (See Expansion section)
VIDEO:
Decoding:
- 10-bit H265/HEVC up tp 4Kp60 or 6Kp30
- VP9 up to 4Kp60
- H264/AVC up to 4Kp30
- AVS2 up to 4Kp60
Encoding:
- H.264 up to 4Kp25 or 1080p60
- JPEG up to 1080p60
Network Connectivity:
- Gigabit Ethernet
- Dual-band 802.11 b/g/n/ac WiFi 5 + Bluetooth 5.0 via AW859A module

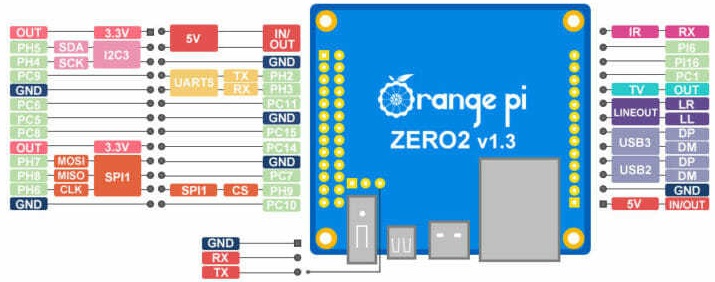

Expansion:
- 13-pin header with 2x USB, analog stereo audio output, CVBS video output, IR input, 3x GPIOs
- 26-pin IO header with I2C, SPI, UART, multiple GPIOs
