Mini Shield for NanoPi NEO Core/Core2

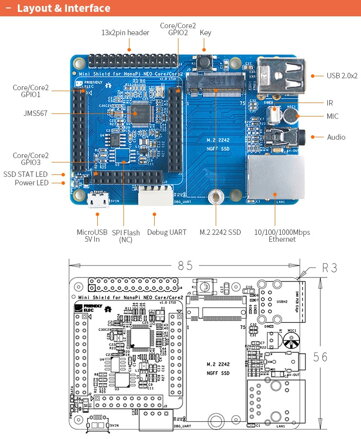

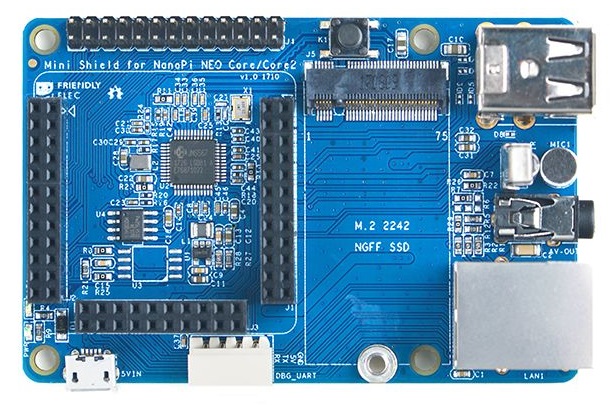

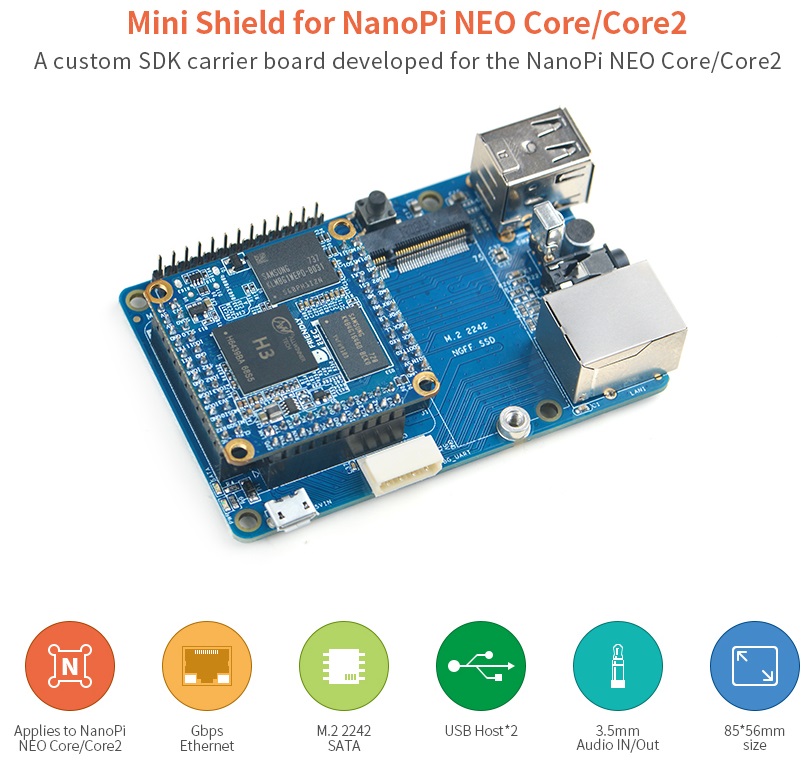

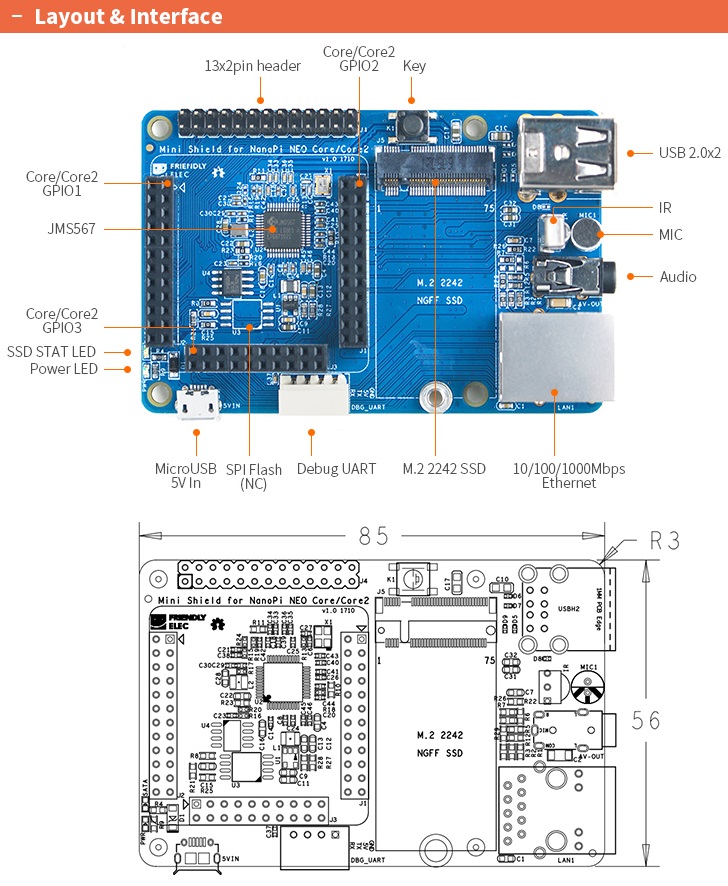

- The Mini Shield for NanoPi NEO Core/Core2 is a custom SDK carrier board developed for the NanoPi NEO Core and NanoPi NEO Core2.
- It has Ethernet port, serial debug port, audio, USB port and etc.
- 1 x Onboard JMS567 USB to SATA IC and 1 x M.2 SSD interface for connecting a 2242 SSD.
- 2 x USB Host ports.
- 1 x Serial debug port for connecting a serial communication board and 1 x Ethernet port.
- 1 x Onboard Microphone and 1 x 3.5mm audio jack for audio recording and playing.
- 2 x 13 Pin header which populate the NanoPi NEO Core/Core2's IO pins.
- 1 x button and 1 x IR interface for working with a remote control
- Room for an SPI Flash(SOP8-200mil) is reserved. Users can solder an SPI flash on the board.
- It has the same dimension and mounting holes as those of a Raspberry Pi.
- The whole board can be well fit into a RPi's case

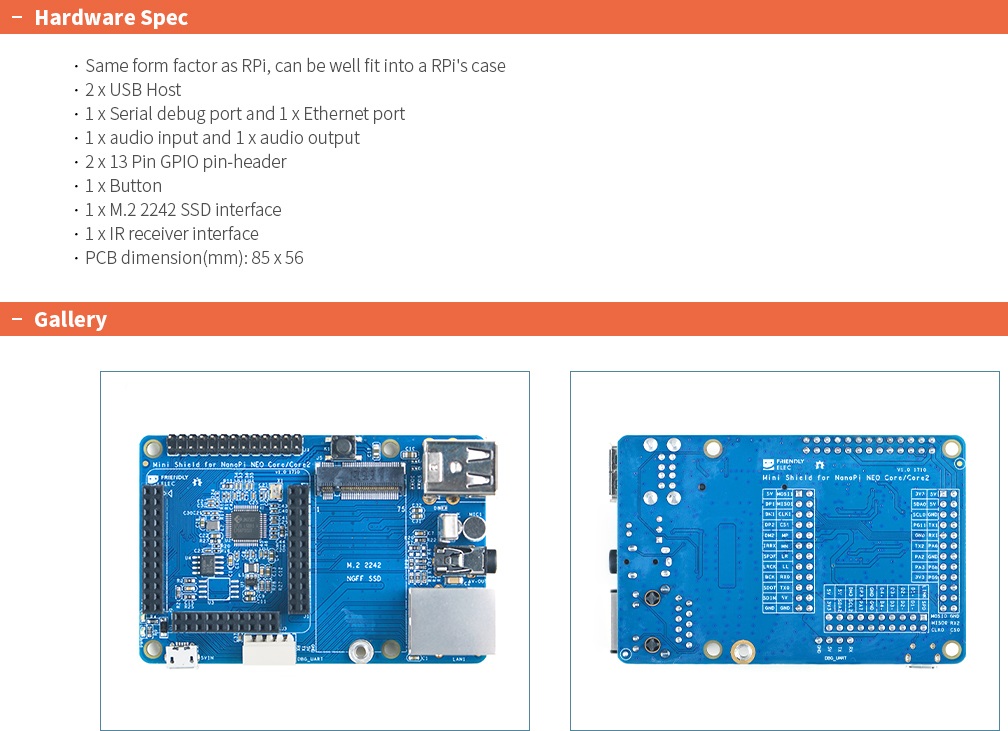

Hardware Specification:
- Same form factor as RPi, can be well fit into a RPi's case
- 2 x USB Host
- 1 x Serial debug port and 1 x Ethernet port
- 1 x audio input and 1 x audio output
- 2 x 13 Pin GPIO pin-header
- 1 x Button
- 1 x M.2 2242 SSD interface
- 1 x IR receiver interface
- PCB dimension(mm): 85 x 56
