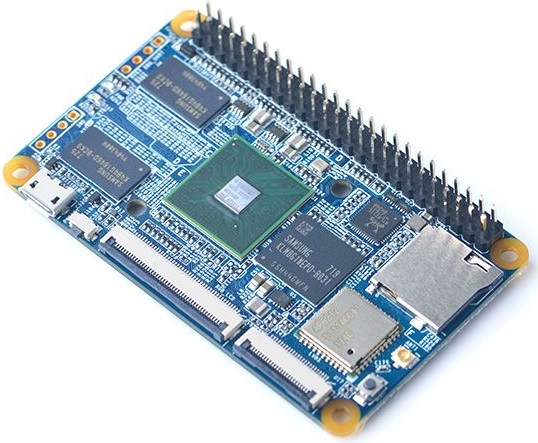

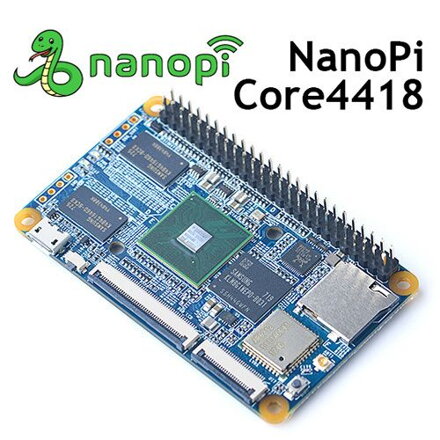

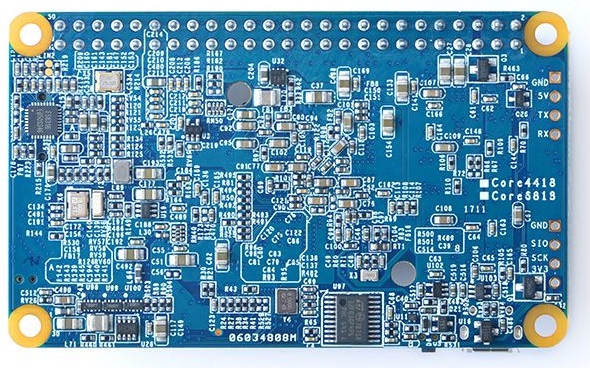

NanoPi Core4418 vývojová deska S5P4418, 1GB DDR3 RAM, 8GB eMMC

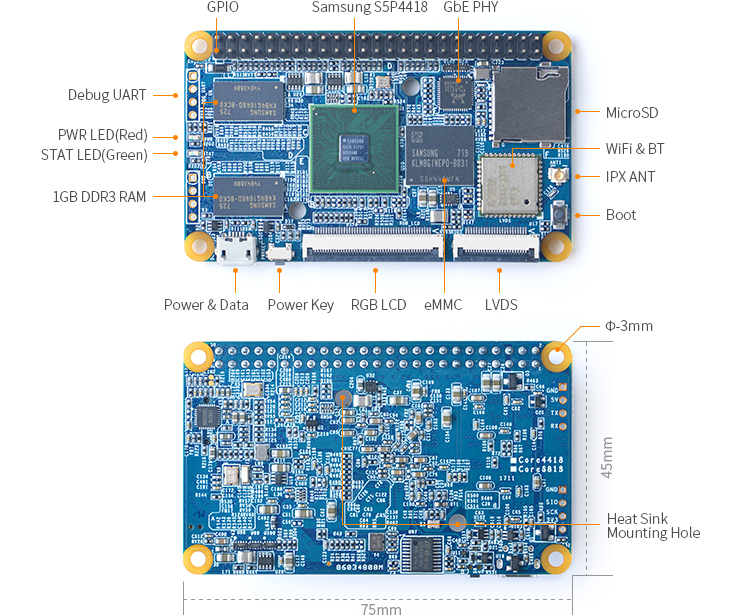

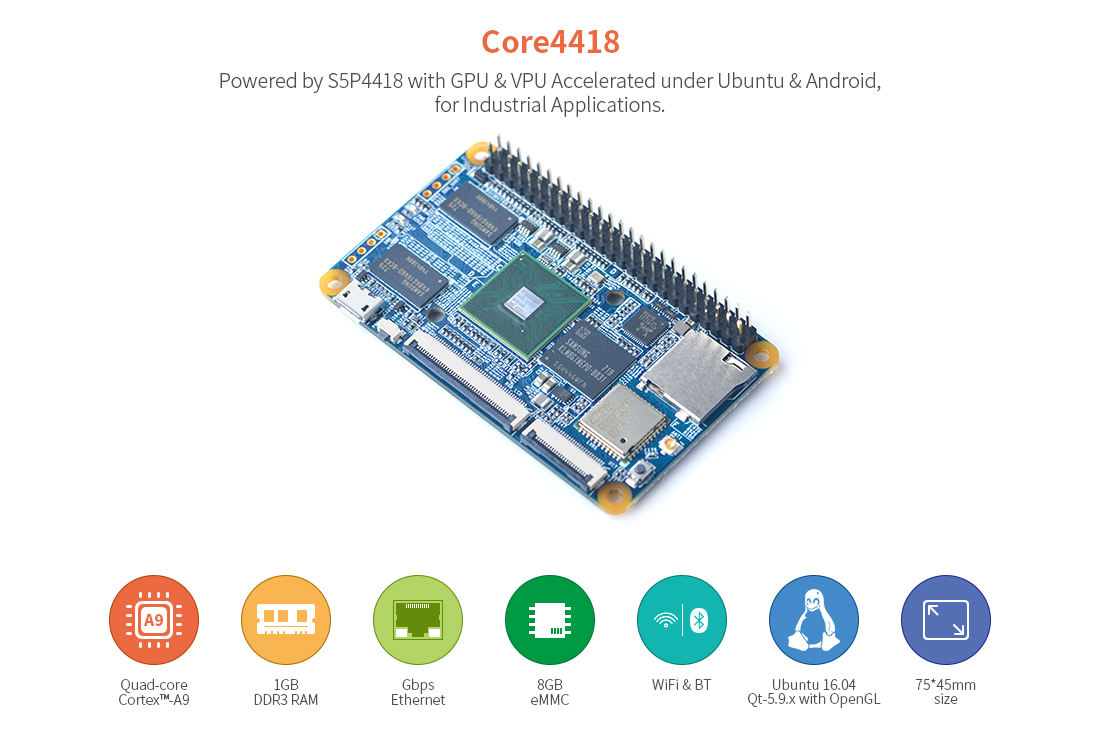

The Core4418 quad core Cortex A9 core board is designed and developed by FriendlyELEC for professional and enterprise users.
It uses the Samsung Quad Core Cortex-A9 S5P4418 SoC with dynamic frequency scaling up to 1.4GHz. Core4418 has 8G eMMC, 512MB/1GB 32bit-DDR3, Wi-Fi/BT module, GigE, MicroSD, and audio codec.

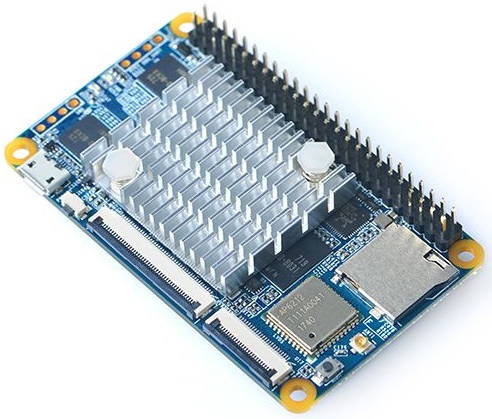

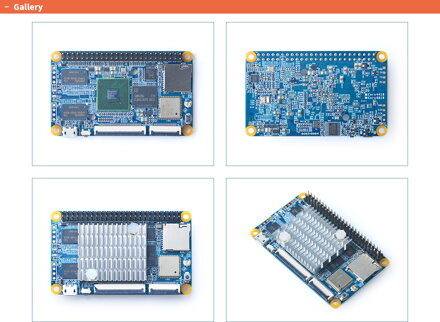

To avoid overheat issues the Core4418 has a heat sink with mounting posts.

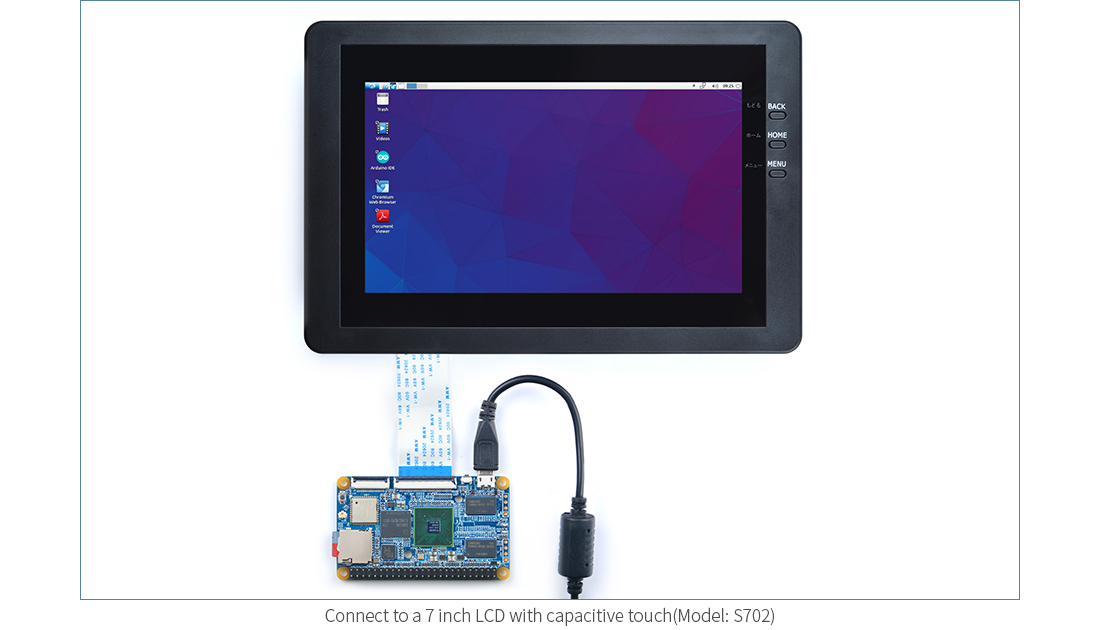

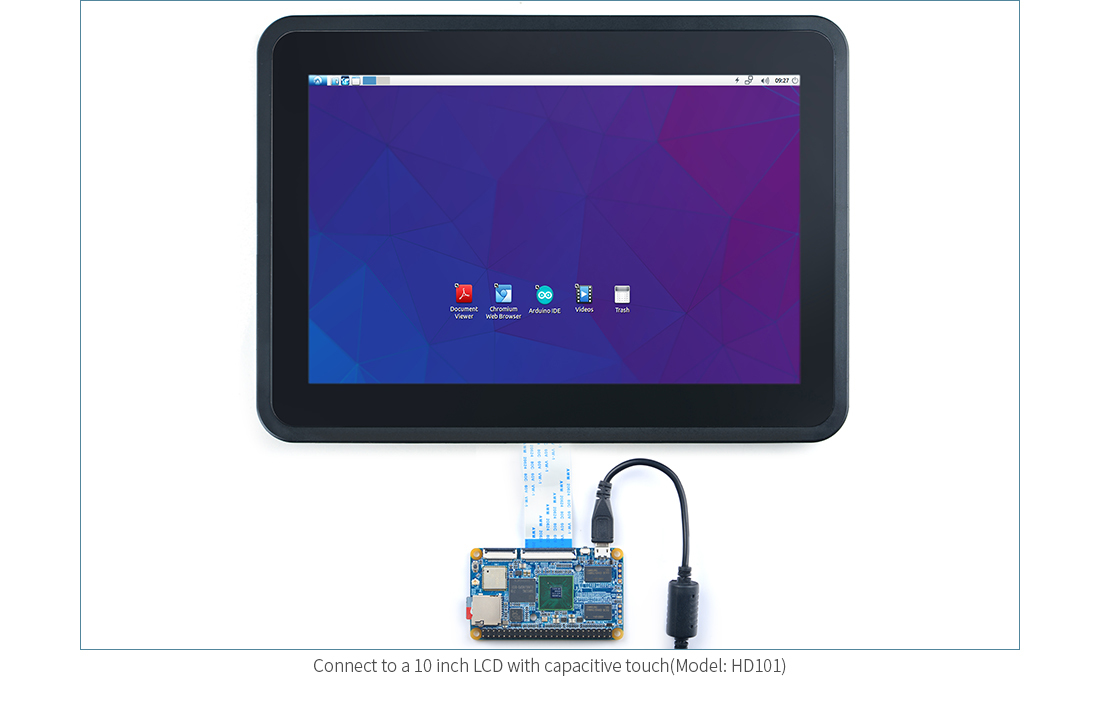

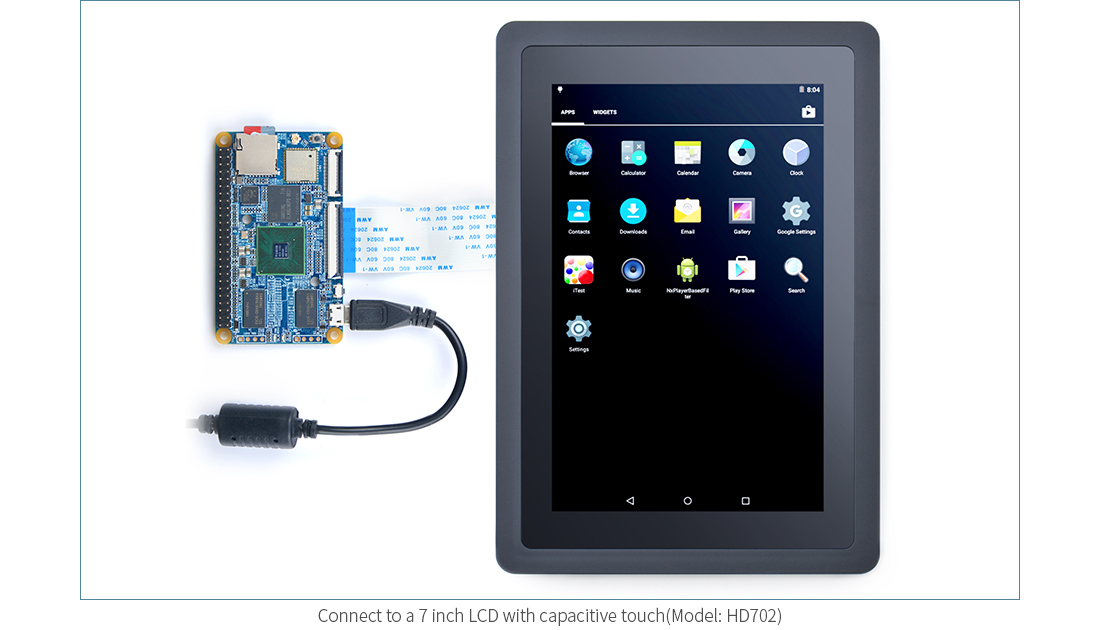

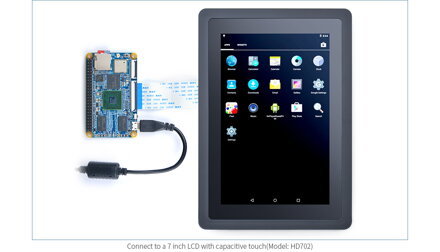

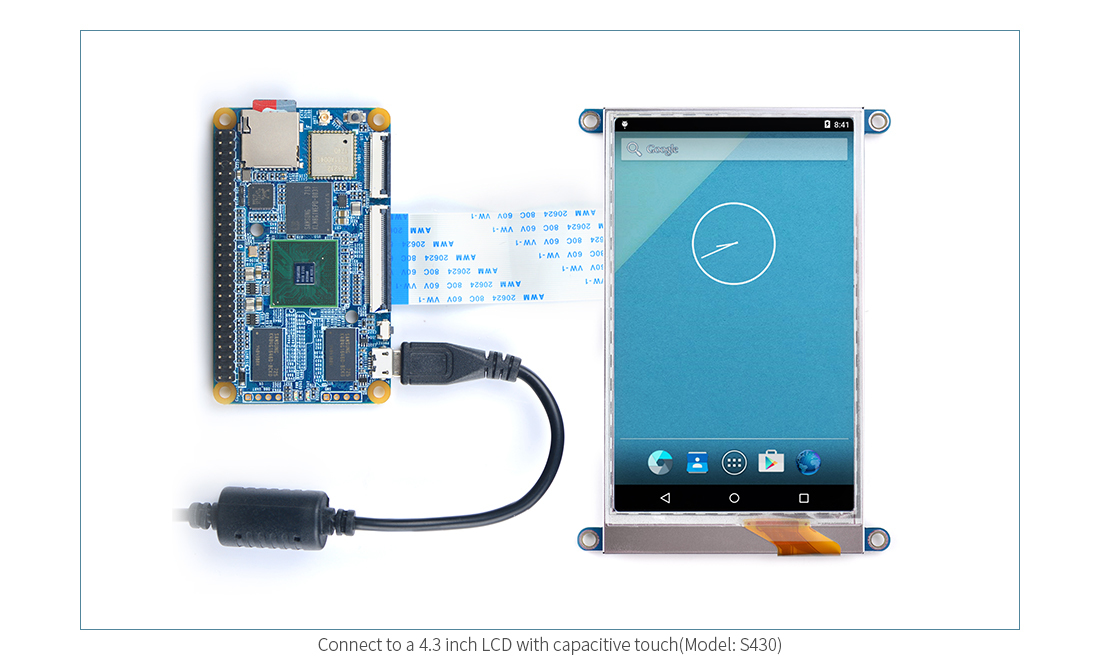

The Core4418 has LVDS and RGB-LCD interface, both are 0.5mm FPC connector and support resistive touch and capacitive touch.
The Core4418 also has a 2.54mm 50pin-GPIO interface, which include USB HOST, UARTs, I2Cs, SPI, PWM, GPIOs etc.
Specifikace:
- SoC： Samsung S5P4418 Quad Core Cortex-A9 with dynamic frequency scaling up to 1.4G Hz
- PMU Power Management: Implemented by an MCU, support software power-off, and RTC alarm power-on functions
- System Memory： 1GB 32bit DDR3 RAM
- eMMC： 8GB
- Storage： 1 x SD Card Slot
- Ethernet： Gbps Ethernet Port (RTL8211E)
- WiFi： 802.11b/g/n
- Bluetooth： 4.0 dual mode
- Antenna： Porcelain Antenna IPX Interface
- Display: LVDS and RGB-LCD, 0.5mm pitch FPC seat
- Audio: MIC in and Headphone out on 2.54mm 50pin-GPIO interface
- USB: 1 x USB 2.0 Host on 2.54mm 50pin-GPIO interface
- MicroUSB: 5V Power IN, and USB 2.0 Client
- GPIO: 2.54 mm pitch 50 pin header
- Serial Debug Port: 2.54mm pitch 4pin header
- LED: 1 x power LED , 1 x GPIO LED
- User Key: 1 x PowerKey
- Power: DC 5V/2A
- Heat Sink: 1 x Heat Sink with mounting holes
- PCB: Six Layer, ENIG

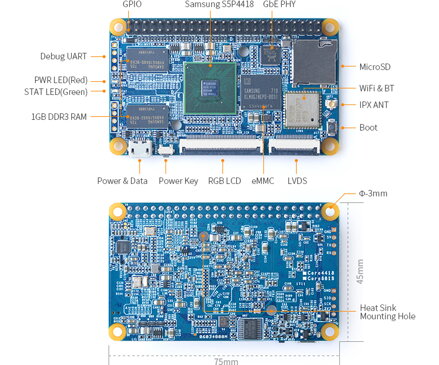

- PCB Dimension: 75 mm x 45 mm
- Working Temperature: -40℃ to 70℃
- OS/Software: u-boot, Android 4.4, Android5.1 and Debian8
