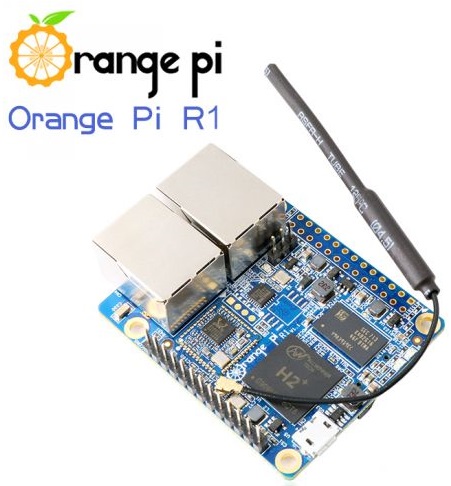

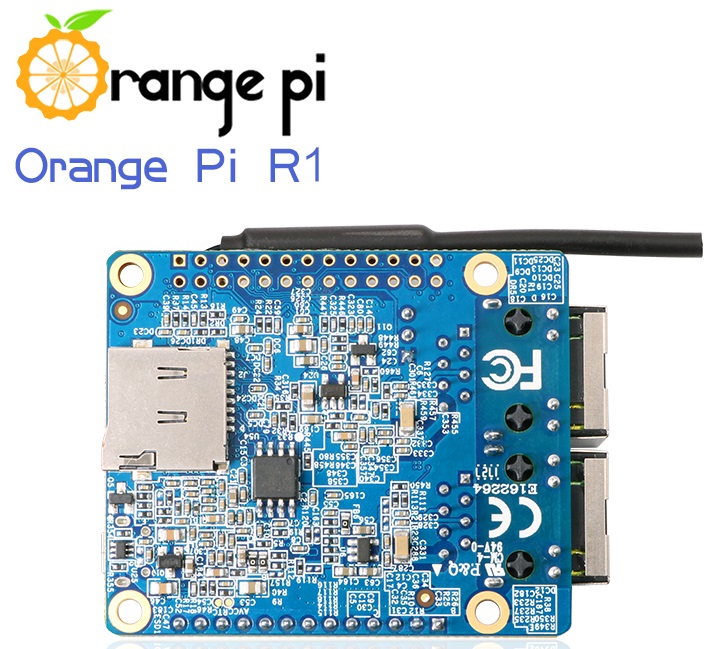

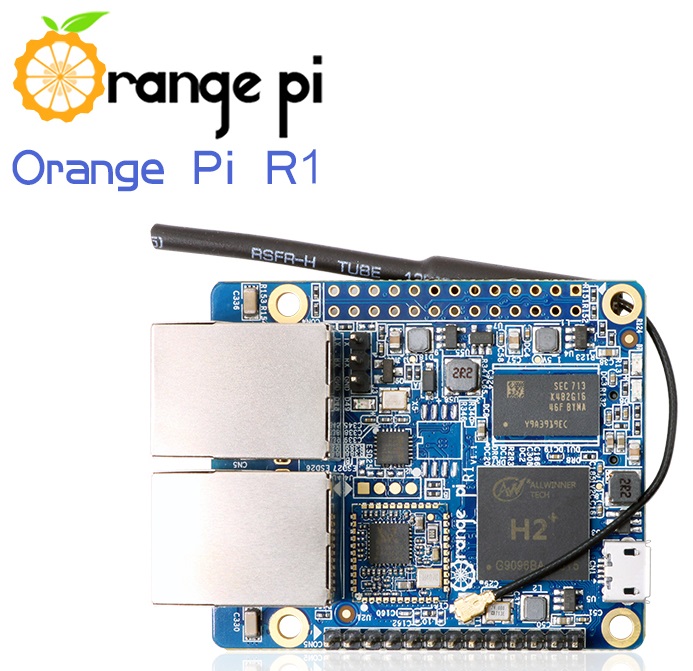

Orange Pi R1 H2+

Doručení probíhá do 2 pracovních dnů; e-mail: info@briv.cz

Vývojová deska Orange Pi R2 s procesorem H2 Quad Core Cortex-A7

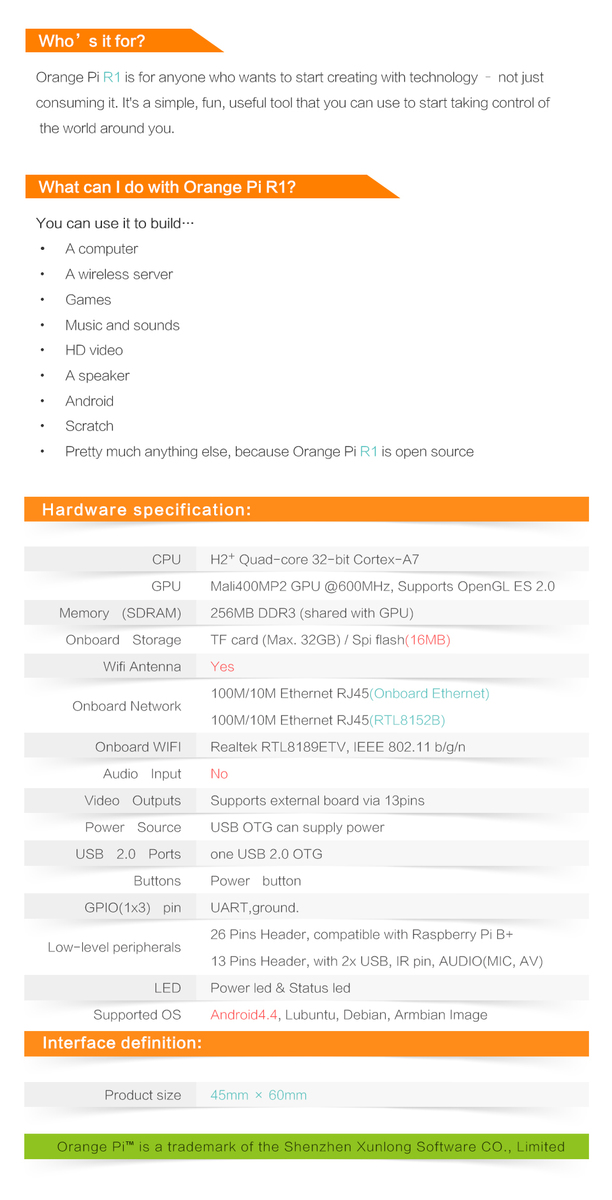

Specifikace:

• SoC – Allwinner H2(+) quad core Cortex A7 processor @ 1.2 GHz with Mali-400MP2 GPU
• System Memory – 256 DDR RAM
• Storage – micro SD card slot, 16 MB SPI flash
• Connectivity – 2x 10/100M Ethernet (including on via RTL8152B USB to Ethernet) + 802.11 b/g/n WiFi (Realtek RTL8189ETV) with u.FL antenna connector and external antenna
• USB – 1x micro USB OTG port
• Debugging – 3-pin header for serial console
• Power Supply – 5V via micro USB port
• Dimensions – 60 x 45 mm

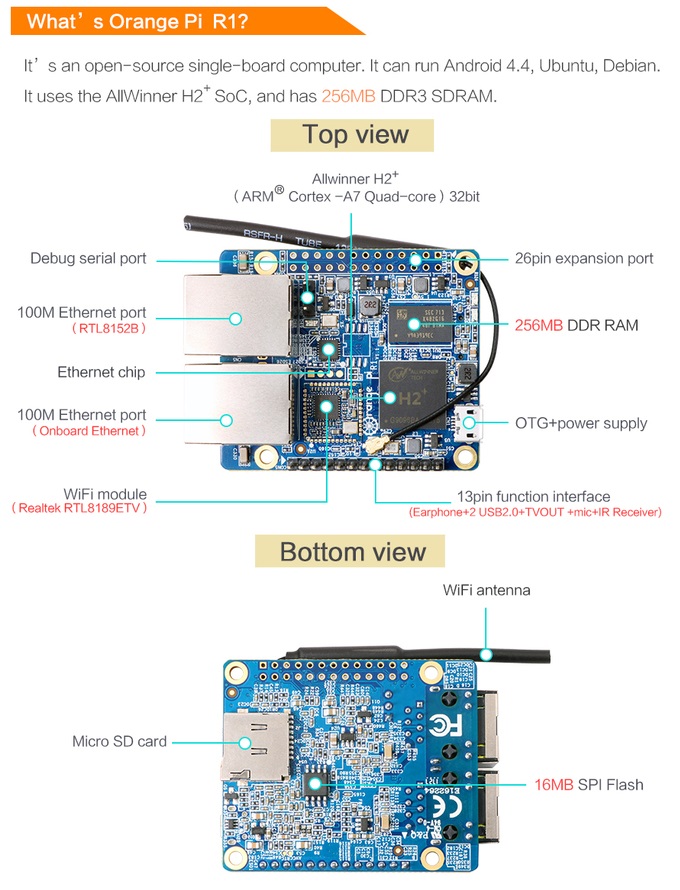

Expansion headers:

• Unpopulated 26-pin "Raspberry Pi B+" header
• 13-pin header with headphone, 2x USB 2.0, TV out, microphone and IR receiver signals
