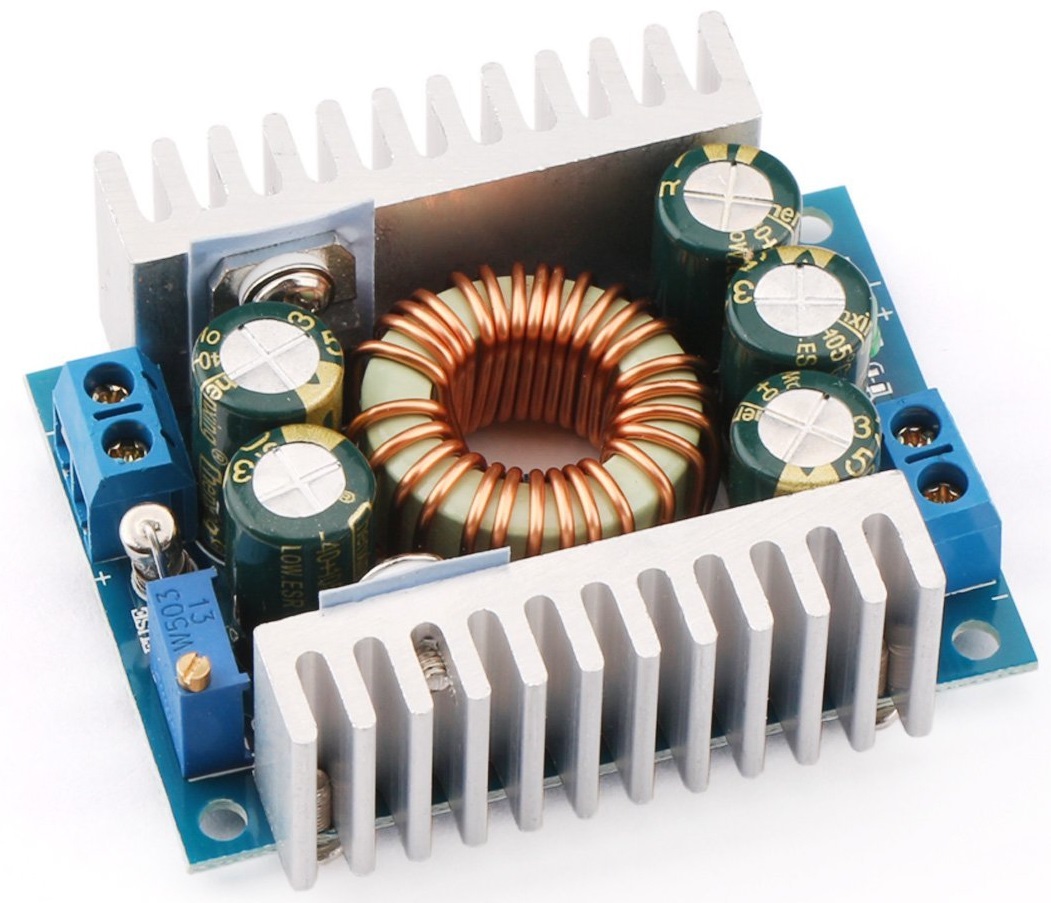

SBT5333 DC-DC Stepdown menič 4.5-30V > 1.25-30V 100W
Specifikace:
- Model: SBT5333
- Vstupní napětí: 4.5-30V
- Výstupní napětí: 1.25-30V
- Výstupní proud: 0-12A 100W
- Účinnost přeměny: <95%
- Klidová spotřeba: cca 2-3.5mA
- Provozní teplota: –40..+85 ℃
- Rozměr modulu cca.: 60*51*22mm
- Hmotnost: 76g
Není stavebnice!
Specification:
- Module Name: 12A buck perfect version
- Module Properties: non-isolated step-down module (BUCK)
- Input voltage: 4.5-30V input voltage do not exceed 30V! ! !

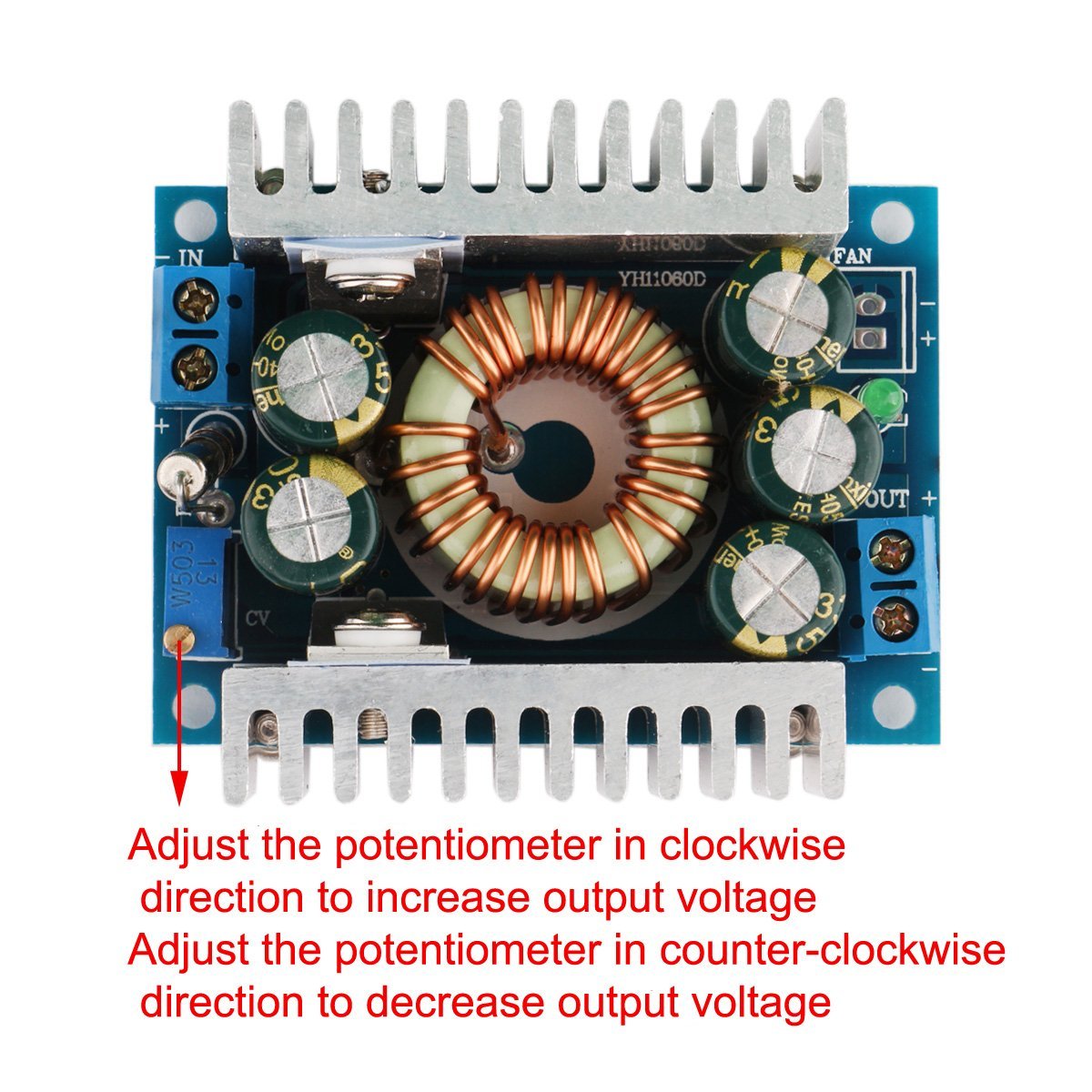

- Output voltage: 1.25-30V continuously adjustable
- Output current: 0-12A 100W enhance heat dissipation up to 200W,
- Working temperature: -40 to +85 degrees
- Operating Frequency: 300KHz
- Conversion efficiency: up to 95% ( efficiency and input and output voltage, current , pressure related )

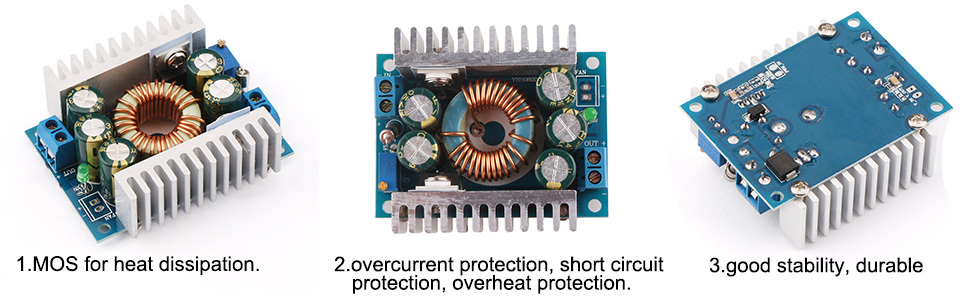

- Short-circuit protection: Yes ( limited current 14A) , please try not to short-circuit
- Over-temperature protection: Yes ( automatic shutdown after over-temperature output )
- Input Reverse Polarity Protection: No , ( if necessary , please enter the string into the diode )
- Installation: 4*3mm screws
- Connection: terminals, free soldering , V-IN is the input , V-OUT is the output , with the housing module wire output.

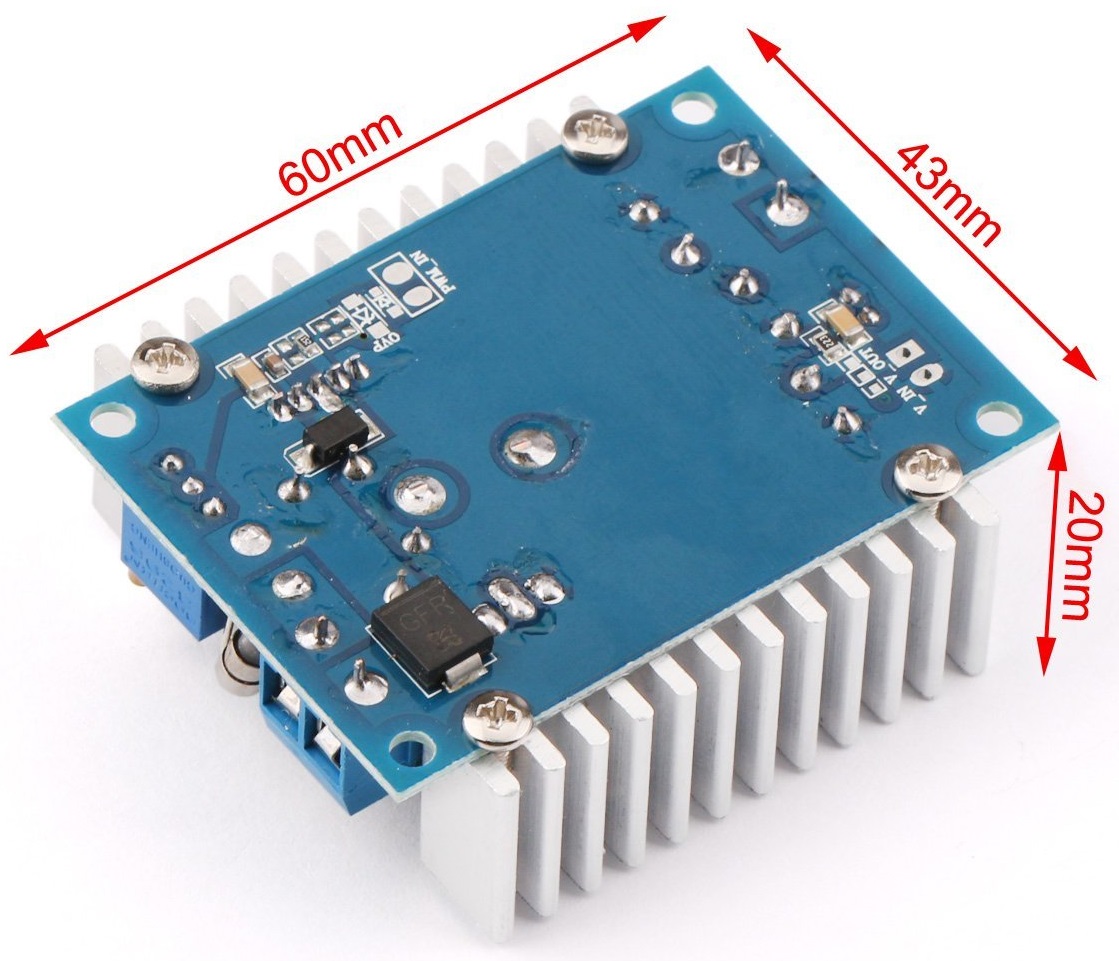

- Module dimensions: 60mm*51mm*22mm
- Weight: 76g
Applications:
- This module can be applied to fields in the input voltage is higher than the buck output voltage , such as batteries, power transformers , DIY adjustable power supply , 24V car T of the power supply, automotive LED lights with power supply, industrial equipment buck , 12V switch 3.3 V, 12V turn 5V, 24V turn 5V, 24V to 12V , etc.
