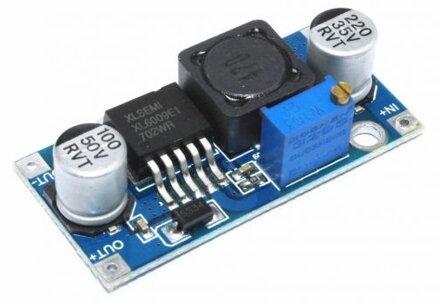

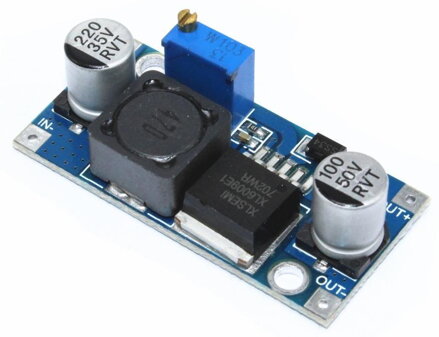

Step-up měnič booster z 5~32V na 5V~40V 2.5A XL6009 4A
Specifikace:
- Vstupní napětí: 5~32V
- Výstupní napětí: 5V~40V
- Výstupní proud: 2.5A (max)
- Příkon: max. 75W
- Účinnost přeměny: <94%
- Klidová spotřeba: cca 18mA
- Provozní teplota: –40..+85 ℃
- Rozměry: 43 x 20 x 12mm
Description:
This module XL6009 is coming with the 3rd generation high-frequency switch technology as the core chip.
The performance is much higher than LM2577.
- Wide input voltage: 3V~32V
- Optimum operating voltage range: 5~32V
- Wide output voltage: 5V~40V
- With 4A high efficiency MOSFET switches, so the efficiency can be up to 94%, (LM2577current is 3A only)
- With ultra high switch frequency 400KHz , even if small capacity filtering capacitors can achieve very good results, ripple is smaller (Compare to LM2577, frequency 50KHz).
Specification:
- Model: DSN6009 boost module
- Module Properties: Non-isolated boost (BOOST)
- Rectification: Non-Synchronous Rectification
- Output Range: 5V ~ 35V
- Input Current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
- Conversion efficiency: <94% (greater the pressure, the lower the efficiency)
- Switching frequency: 400KHz
- Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
- Load Regulation: +/-0.5%
- Voltage Regulation: +/-0.5%
- Operating Temperature: -40 degree to +85 degree
- Body Size: 43 x 20 x 12mm/1.7" x 0.8" x 0.47"(L*W*T)
- Input way: IN+, IN-;
- Output way: OUT+, OUT-
