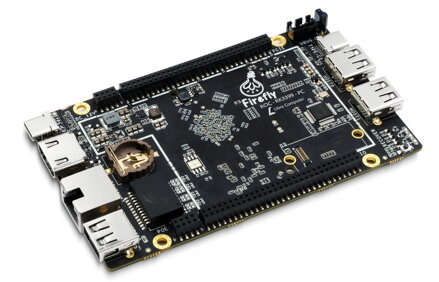

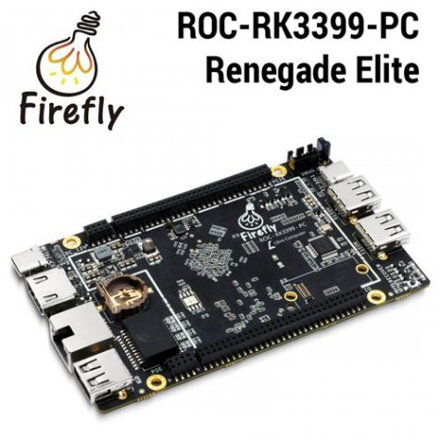

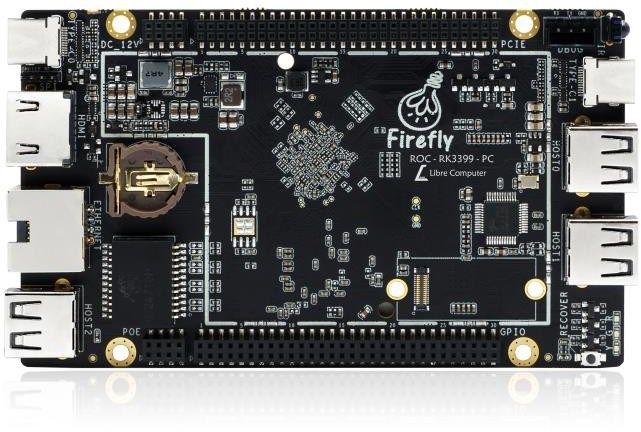

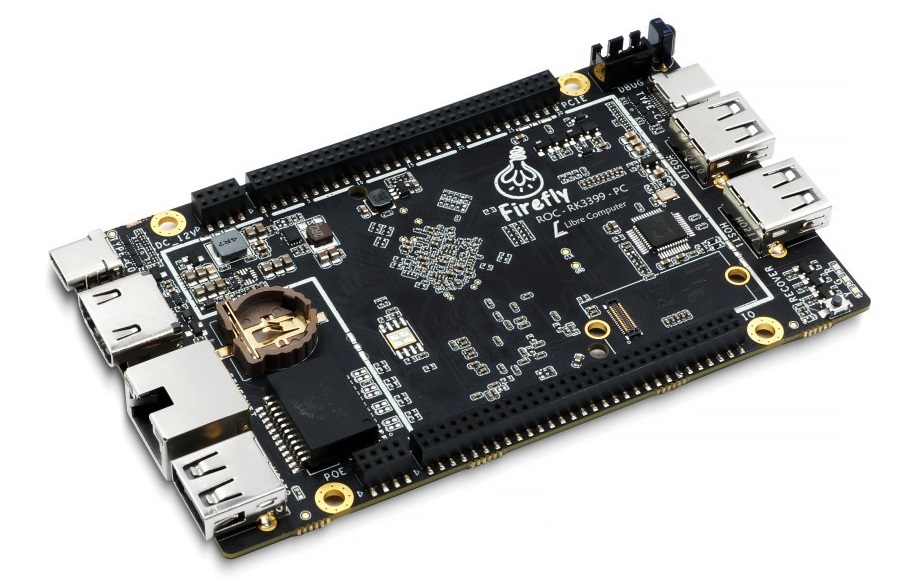

ROC-RK3399-PC Renegade Elite Quad-Core 64-Bit Open source main board
Renegade Elite is a low-profile high-performance 4K-capable 64-bit ARM computer with 4GB of LPDDR4 RAM capable of running desktop-class Linux based operating systems like Debian, Arch, Ubuntu, Fedora, OpenSUSE, Android 8.1, and more.
At 1.19 cm (0.47 inches), it is one of the thinnest SBCs on the market as well as being one of the fastest compared to Cortex-A53 boards like the Raspberry Pi 3 or Cortex-A17 boards like the ASUS Tinker Board.
It is supported by upstream Linux which means that software support for hardware capabilities will continuously improve unlike other platforms that rely on proprietary vendor board support package (BSP).

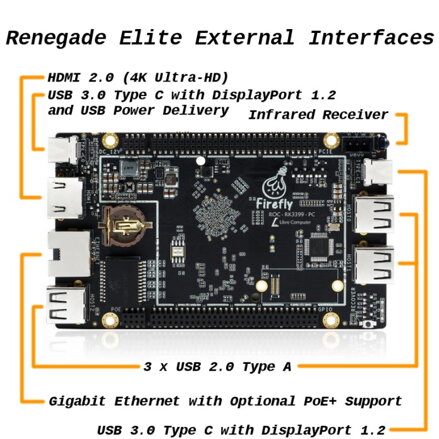

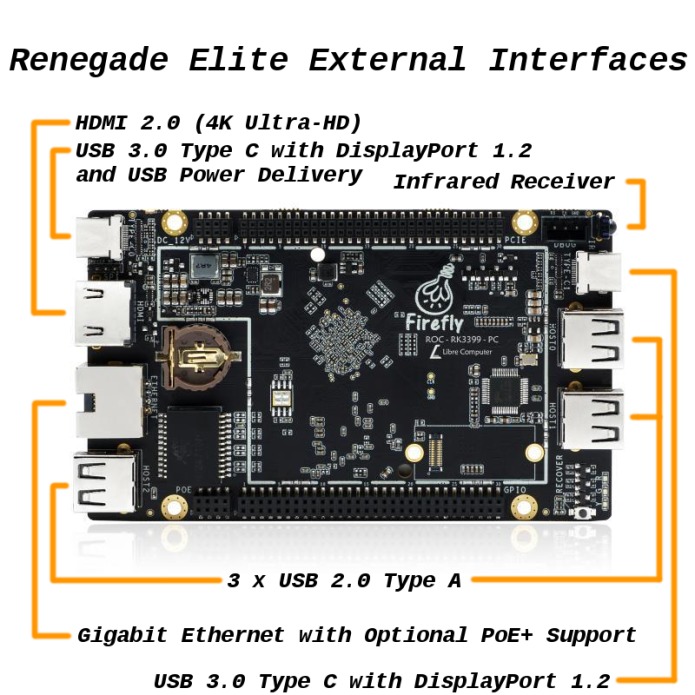

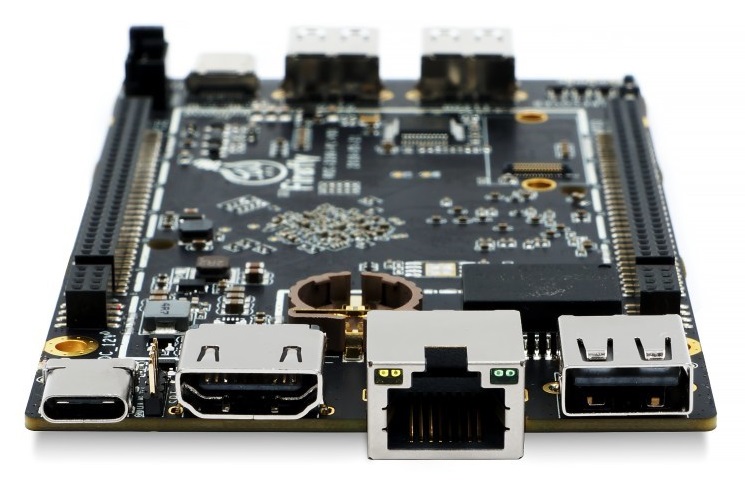

Renegade Elite features a rich set of standards-compliant external interfaces.
There are two USB 3.0 Type-C ports featuring DisplayPort Alternate Mode for driving 4K monitors (only one can be used in DisplayPort Alternate mode at a time).
The rear Type-C port also features support for USB Power Delivery which enables single cable power, 4K video, and peripheral connectivity.
HDMI 2.0 with 4K is also featured and can be driven simultaneously with DisplayPort, Embedded DisplayPort, or MIPI DSI.

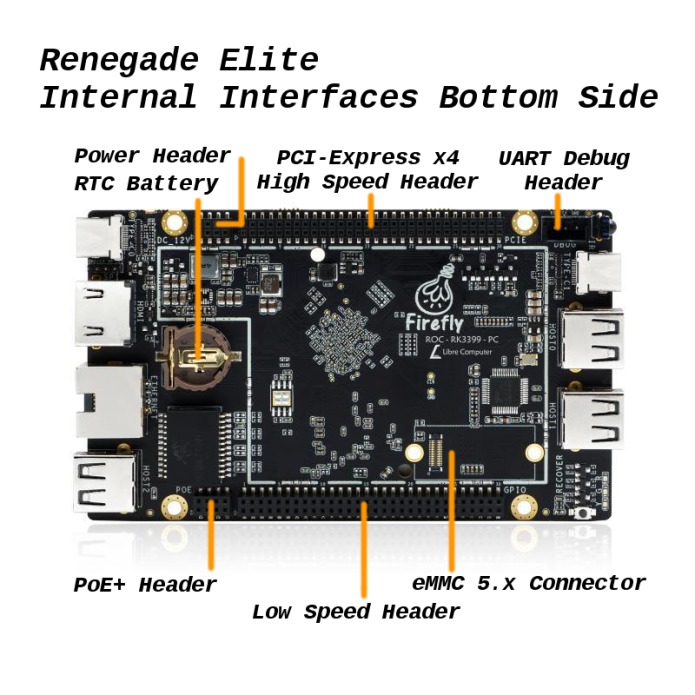

For server application, the board offers UEFI-capable GUI bootloader, onboard headers for 802.3at (30W) PoE+ mezzanine support, and battery backed real-time-clock (RTC).
High-speed header expansion with 4-lane PCI-E 2.1 enables SSD and SATA mezzanines while low-speed header expansion support USB, SDIO, UART, and I2C mezzanine.
eMMC 5.x connector supports module with up to 128GB of storage.

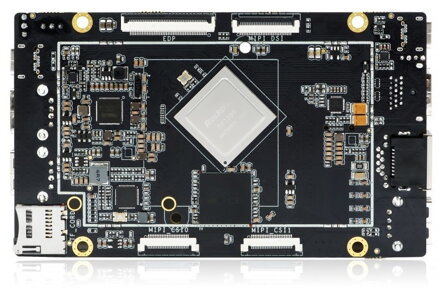

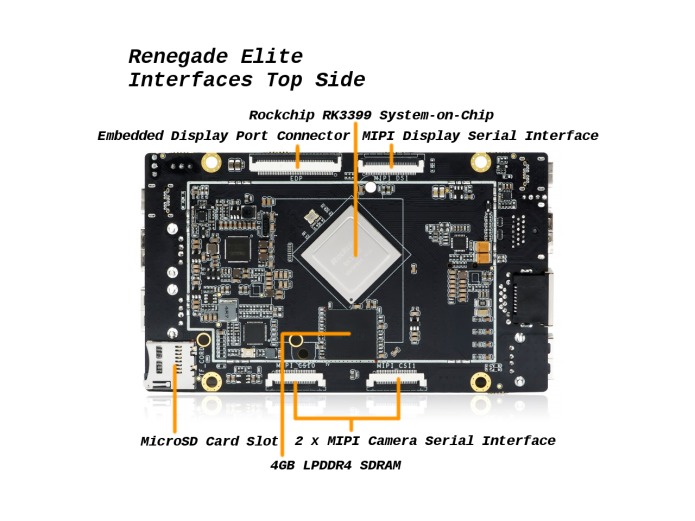

For product integration, Renegade Elite supports Embedded DisplayPort, MIPI-DSI, MIPI-CSI, and MIPI-CSI/DSI dual role interfaces.
Paired with stereo vision cameras or displays, Renegade Elite becomes an ideal platform for virtual reality, artificial intelligence, stereo computer-vision, heterogeneous compute, GPGPU, convolutional neural-networks, OpenCL, TensorFlow, and Caffe.
RK3399 Key Specification:
- Dual performance out-of-order ARM Cortex-A72 cores
- Quad power-optimized in-order ARM Cortex-A53 cores
- Quad OpenGL ES 3.2/Vulkan/OpenCL 1.2 ARM Mali-T860 cores
- 4GB LPDDR4 SDRAM
- 128Mb SPI NOR for GUI bootloader
- 120mm x 72mm x 11.9mm
| Specification | |
| SoC |
Rockchip RK3399 SoC |
| CPU | 2 ARM Cortex-A72 + 4 ARM Cortex-A53 |
| GPU |
4 Core ARM Mali-T860 OpenGL ES 1.1 / 1.2 / 2.0 / 3.1 / 3.2 OpenCL 1.2 |
| Memory | 4GB LPDDR4 SDRAM |
| Storage | eMMC 5.x Interface |
| Hardware Features | |
| Ethernet |
10/100/1000Mbps Ethernet |
| Display | 1 x HDMI 2.0 ( Type-A ), support maximum 4K@60Hz display
Embedded DisplayPort Interface |
| Audio | |
| USB |
USB 3.0 Type C with DisplayPort + Power Delivery USB 3.0 Type C with DisplayPort 3 USB 2.0 Type A |
| IR | 1 x IR Receiver Module，Support self-defined IR remote |
| LED | 1 x Power Status LED (Blue)，1 x User Defined LED (Green) |
| Button | 1 x Recover Button |
| Debugging | 1 x UART Serial Console，for debugging |
| Reserved Interface | 60 Pin PCI-E Expansion Header 60 Pin Low Speed Header UART Header |
| Power | DC12V - 2A ( via Micro USB) |
| OS/Software | |
| OS | Linux Mainline 4.19+ Linux Rockchip 4.4 Android 8 Oreo |
| Programming support | C、C++、Java、Shell、Pyhon etc |
| Appearance | |
| PCB Size | 120mm x 72mm x 11.9mm |
| Weight |
