ROC-RK3328-CC Renegade Quad-Core 64-Bit Open source main board
Firefly first ultra-small open-source main board, unique USB3.0 and DDR4 to make its performance faster and more stable. The ultra-affordable ROC-RK3328-CC is your first choice for exploring the programming world

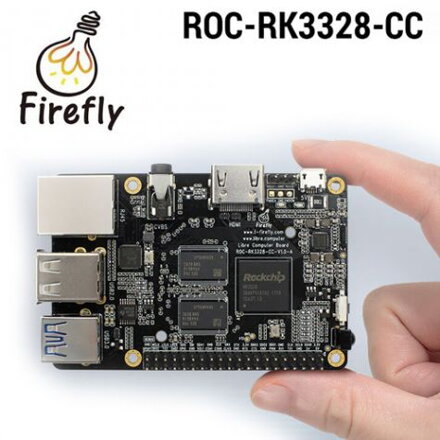

Mini size, powerful performance
The size of a credit card but contains a strong performance, the main board uses RK3328 quad-core A53x4 64-bit processor, built-in powerful GPU, running Android and Linux systems smoothly.

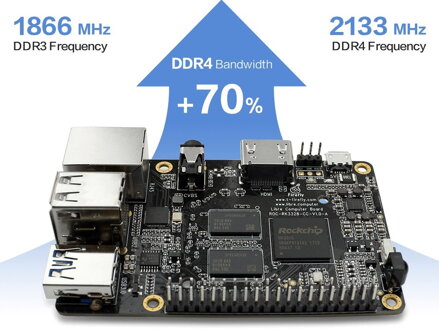

DDR4 high-performance memory
DDR4 improve frequency and bandwidth, highly configured frequency and bandwidth improve operating system fluency

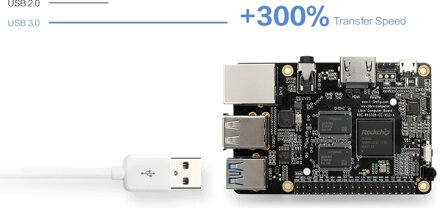

High-Speed
Data Channel USB3.0
USB3.0 transfer speed than traditional USB2.0 upgrade 3 times, so that data is unobstructed

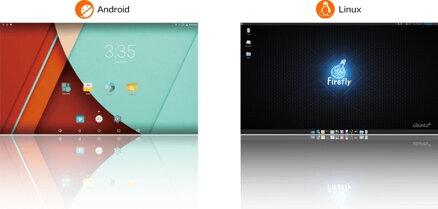

Support Android and Ubuntu dual system
ROC-RK3328-CC supports Android and Ubuntu dual system, can be used for software development, office learning, smart embedded, DIY electronics, gaming and so on

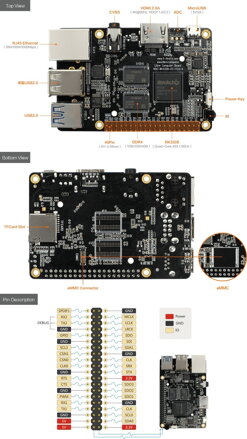

Rich expansion interface
The 40PIN expansion interface contains GPIO, I2S, SPI, I2C, UART, PWM SPDIF, DEBUG. The unique EMMC memory expansion interface can support addition EMMC memory
Specification:
Specification:
| SoC |
Rockchip RK3328 |
| CPU |
Quad-Core ARM® Cortex-A53 64-bit processor, Frequency up to 1.5GHz |
| GPU |
ARM Mali-450 MP2 Quad-Core GPU Support OpenGL ES1.1/2.0, OpenVG1.1 |
| VPU | Support 4K VP9 and 4K 10bits H265 / H264 video decoding, up to 60fps
1080P multi-format video decoding(WMV, MPEG-1/2/4, VP9, H.264, H.265) 1080P video coding, support H.264/H.265 Video postprocessor: de-interlacing, denoising, edge / detail / color optimization |
| Memory | 1GB/2GB/4GB DDR4 RAM |
| Storage | High-Speed eMMC extension interface
MicroSD (TF) Card Slot |
Hardware Features:
| Ethernet |
10/100/1000Mbps Ethernet |
| Display |
1 x HDMI 2.0 ( Type-A ), support maximum 4K@60Hz display 1x TV out, CVBS display, in accordance with 480i, 576i standard |
| Audio | 1 x SPDIF, for audio output
1 x I2S, support 8 channels |
| USB | 2 x USB2.0 HOST，1 x USB3.0 HOST |
| IR | 1 x IR Receiver Module，Support self-defined IR remote |
| LED | 1 x Power Status LED (Blue)，1 x User Defined LED (Green) |
| Button | 1 x Recover Button |
| Debugging | 1 x Serial Console，for debugging |
| Reserved Interface | 40pins 2.54mm header：
support I2S、SPI、I2Cx2、UARTx2、PWM、SPDIF interfaces |
| Power | DC12V - 2A ( via Micro USB) |
| OS/Software: | |
| OS | Android 7.1.1 , Ubuntu 16.04 , u-boot |
| Programming support | C、C++、Java、Shell、Pyhon etc |
| Appearance: | |

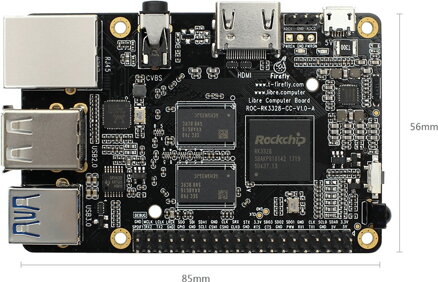

| PCB Size | 85mm x 56mm （8 Layer design, Immersion gold process） |
| Weight | 36g |
