A9 USB Watchdog LCD

Doručení probíhá do 2 pracovních dnů; e-mail: info@briv.cz

USB Watchdog Computer Automatic Restart Blue Screen Mining Game Server BTC Miner for PC Desktop

This product is designed for automatically restarting computers when blue screen crash occurs, very it\s very helpful in cryptocurrency mining, servers, monitoring systems, etc.

Features:
• Applicable to a variety of computer motherboards. Motherboards just need with a Type-A USB interface.
• Use for windows x86/x64 system. include winxp, win7, win8, win10 etc.
• Need to install the driver to compatible with a variety of motherboards.
• With desktop software, it can precise monitoring the program as your need, better than no software version.
• Reboot timeout time 10-1270 seconds, you can set up it as your need;
• Newest monitoring desktop software version: USBWatchDog V2.3.

How to use?

1. Install the driver

• Before install driver, please do not connect USB watchdog with your computer, double-click "Watchdog Driver. exe", click "Install", waiting for the installation is complete.

2. Connect Watchdog to computer USB port.

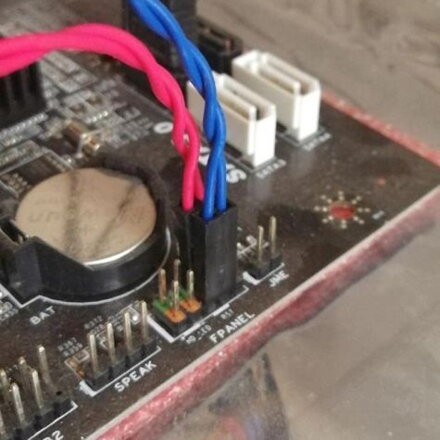

• Connect Watchdog to computer USB port. Do not connect cable with the motherboard reset pin temporarily, because default time-out time is 3 minutes, if driver installation did not finish within 3 minutes, the USB Watchdog may send a reboot signal to system. Wait for the computer to finish the automatic recognition of the watchdog module.

3. Configure USB Watchdog Monitor Software configuration.

• A. Open USBWatchDog V2.3.exe and configure as your need.
• B. It might be needed to reboot the USB Watchdog software after change of the configuration.

Note:

• Updated Software can be found online by searching for watchdog (version) driver or download here.
• Some antivirus software may prevent the program running, please allow and whitelist it.
• When the watchdog is running, the USB LED will flash.
• You can tell the computer has crashed when the USB LED is stuck lit solid without flashing.

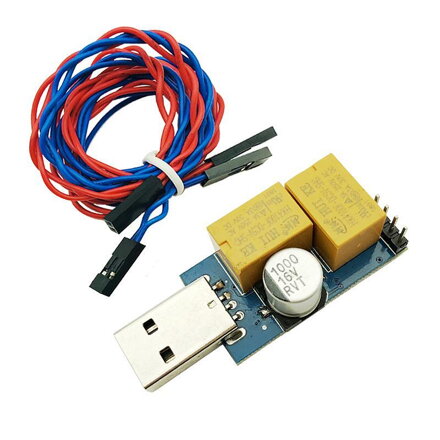

Dual-color wire design can avoid connecting into the wrong interfaces.

Specification:

• Model: A363PC USB_WDG V2.6
• Item Type: USB Watchdog
• Material: Metal + Plastic
• Color: shown as pictures
• Size: 5.3×2.0×1.5cm (Approx.)
• Cable length: 50cm/19.69in (Approx.)

What I included:

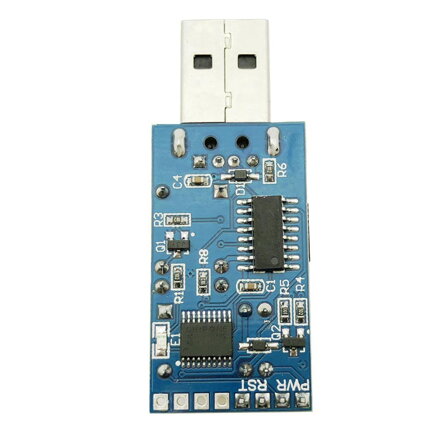

• 1 x Watchdog Control Board
• 1 x Reset Control Cable
