Popis Orange Pi i96 IoT RDA Micro 8810PL

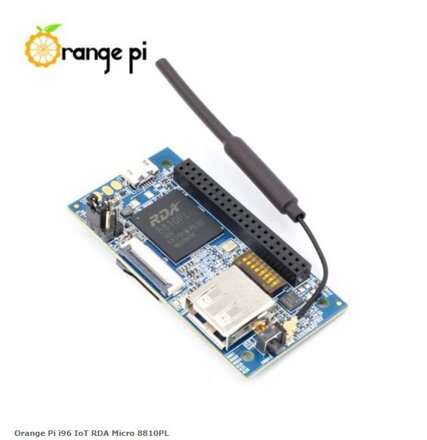

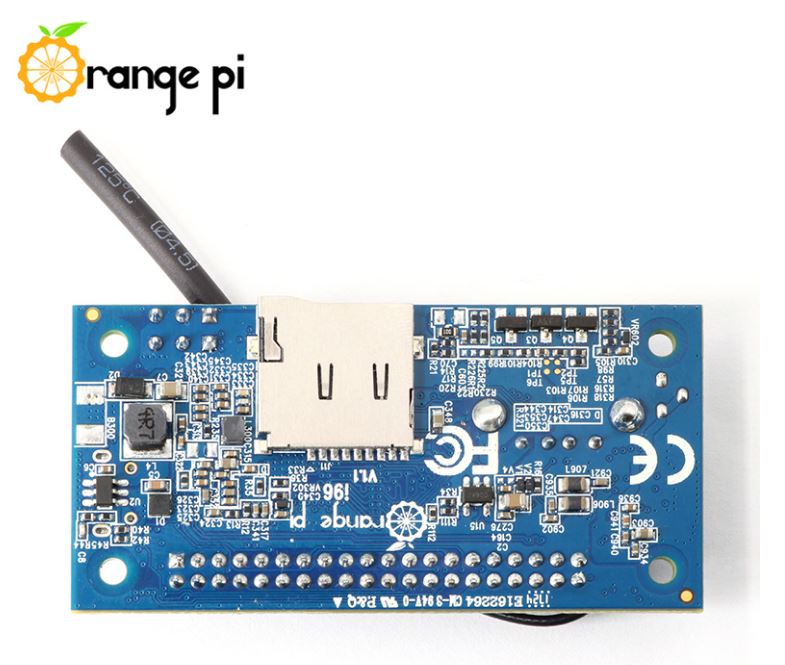

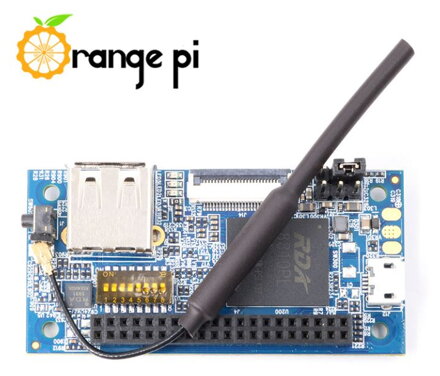

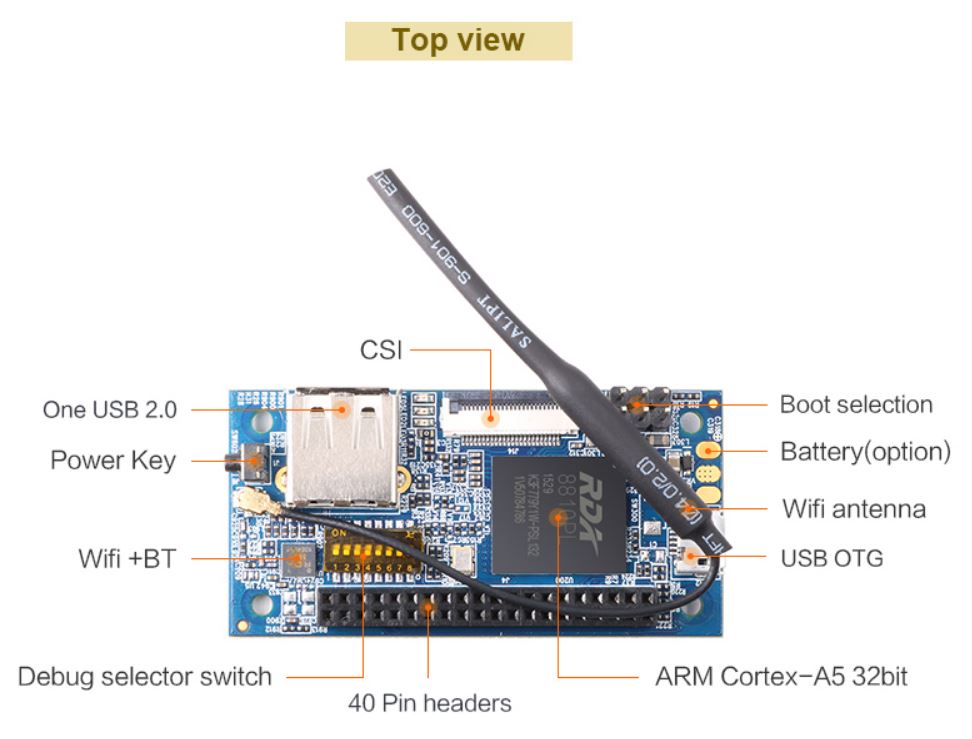

IoT vývojová deska Orange Pi i96 s procesorem RDA Micro 8810PL

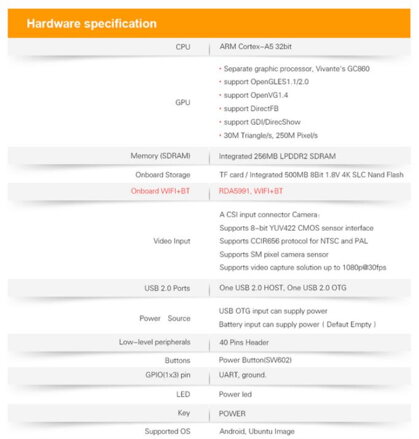

Specifikace:
- SoC – RDA Micro 8810PL ARM Cortex A5 processor @ up to 1.0 GHz with 2Gbit (256MB) on-chip LPDDR2 RAM, 4Gbit (512MB) on-chip SLC NAND flash , 256KB L2 cache, and Vivante GC860 3D GPU

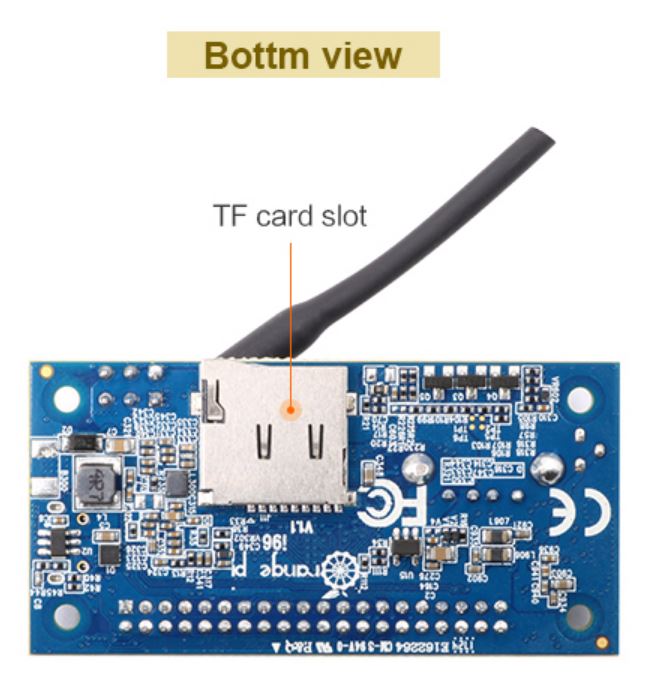

- External Storage – micro SD slot
- Connectivity – WiFi 802.11 b/g/n + Bluetooth 2.1/EDR module (RDA5991)
- Camera – MIPI CSI-2 connector for camera sensor up to 5MP
- Video – 1080p30 H.264 encoding
- USB – 1x USB host port, 1x micro USB OTG port
- Expansion – 40-pin GPIO header with SPI, I2C, GPIOs, etc...
- Debugging – 3x pin UART for serial console
- Misc – 8 selection jumpers, power button, power LED, boot selection header
- Power Supply – 5V via micro USB port; optional support for battery power

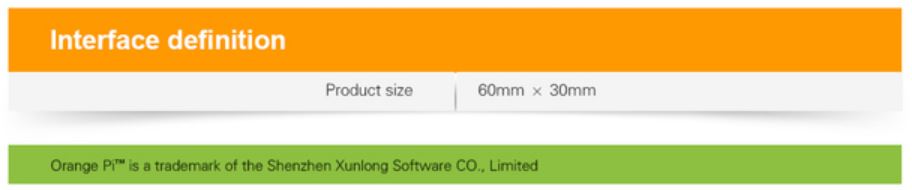

- Dimensions – 60 x 30 mm as per 96Boards IoT Edition specification
- Certifications – CE and FCC based on the silkscreen
